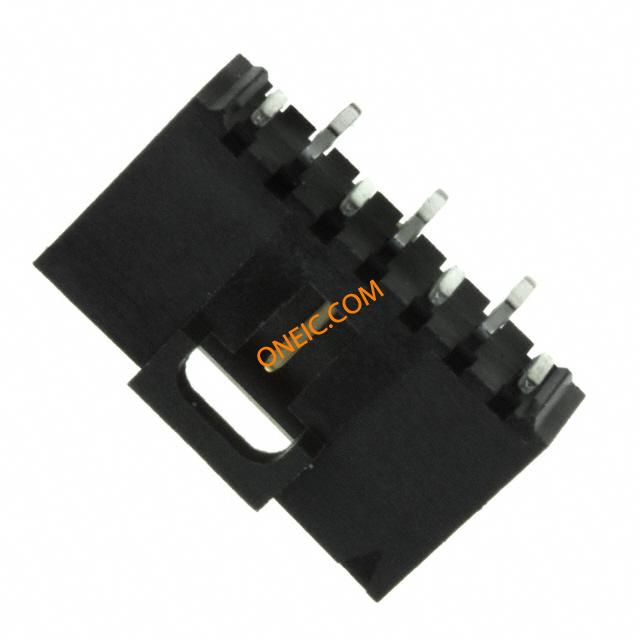

点击放大查看
74099-1007
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER .100 VERT 7POS SMD Headers & Wire Housings 2.54 WIRE/BOARD HDR Vertical 7 CKT Conn Shrouded Header HDR 7 POS 2.54mm Solder ST SMD Tube |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0740991007 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1248 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Surface Mount |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 安装样式 | Wire | 排数 | 1 |
| 触点数 | 7 | 位数 | 7 |
| 接触长度 - 配合 | 0.260" (6.60mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded | 系列 | 74099 |
| 产品子类型 | Headers | 加载位置数 | All |
