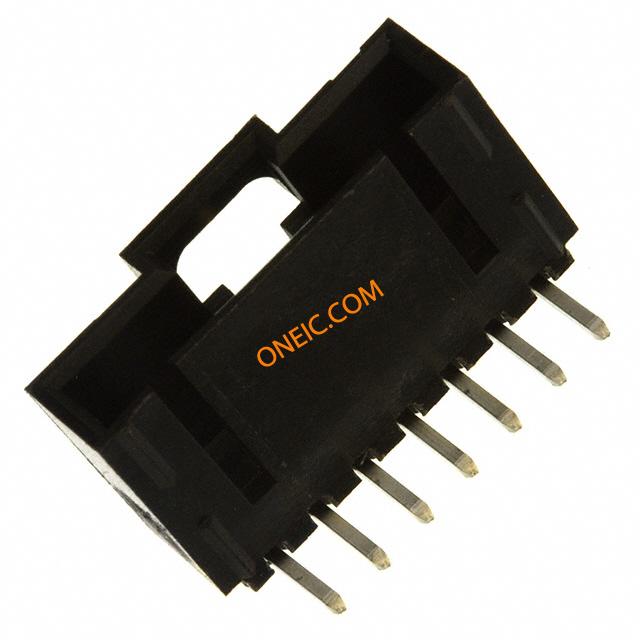

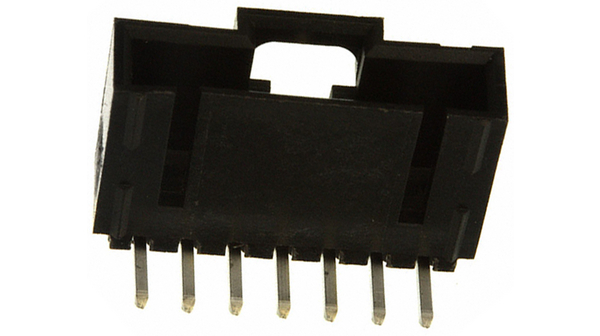

70553-0111
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 7POS .100 R/A 30AU Headers & Wire Housings 2.54MM SR RA 7P HDR AU L-PRO SHRD Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Tube PCB header Pitch2.54 mm Poles 7 Single row / 90° / with shroud SL, 70553-0111, Molex |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0705530111 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1040 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 250 V | 极数 | 7 |
| 最大额定电流 | 3 A | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 排数 | 1 | 连接器样式 | Single row |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 连接器颜色 | black |
| 触点数 | 7 | 位数 | 7 |
| 第一连接器极性 | Male | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Shrouded | 系列 | 70553 |
| 产品子类型 | Headers | 连接方式 | Wire-Board |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40...+105 °C | ||
