点击放大查看

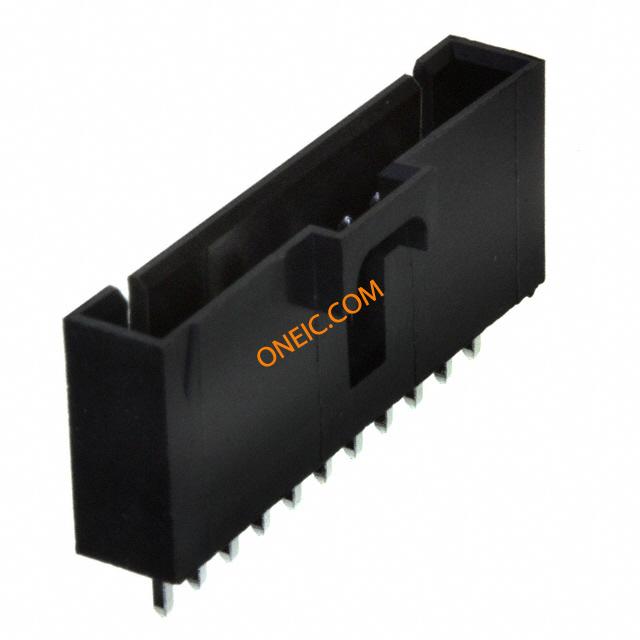

70543-0045
| 制造商 | Molex, LLC |
| 描述 | CONN HDR VERT 11POS .100 TIN Headers & Wire Housings 2.54MM HDR 11 CKT Vertical Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0705430045 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 816 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 端接样式 | Through Hole |
| 触点数 | 11 | 位数 | 11 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 150µin (3.81µm) |
产品信息
| 类型 | Shrouded | 系列 | 70543 |
| 产品子类型 | Headers | 加载位置数 | All |
