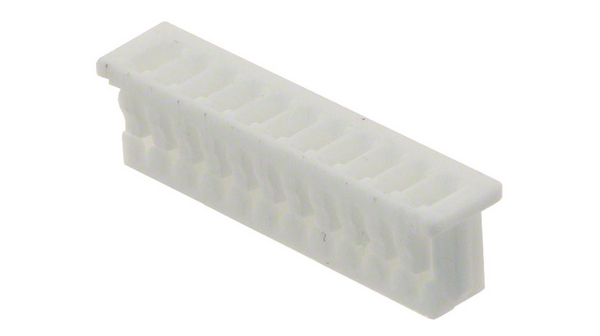

点击放大查看
51021-1100
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 11POS 1.25MM 11 way receptacle housing,1.25mm pitch Headers & Wire Housings RECEPTACLE 11 POS Conn Housing RCP 11 POS 1.25mm Crimp ST Bag CRIMP HOUSING, 1.25MM, 11WAY Crimp housing 1.25 mm Poles 11 PicoBlade, 51021-1100, Molex Molex PICOBLADE 系列 1.25mm 节距 11 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | PicoBlade | 零件号别名 | 0510211100 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - PicoBlade 51021 Series | 额定电压 | :125V |
| 工作电压 | :125V | 介电强度 | :250V |
| 最大额定电流 | :1A | 绝缘电阻 | :100Mohm |
机械参数
| 深度 | 3.95mm | 间距 | 1.25mm |
| 宽度 | 3.2mm | 长度 | 15.5mm |
| 重量 | 0.01 | 端接方式 | :Crimp |
| 安装类型 | Straight | 接触镀层 | :Tin |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | :GF Nylon UL94V-0 | 触头材料 | :Phosphor Bronze |
| 壳体材料 | PBT | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 11 |
| 接触件端接 | :Crimp | 第一连接器安装类型 | :PCB |
产品信息
| 连接器性别 | Female | 系列 | 51021 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | PicoBlade Wire-to-Board Connector, PicoBlade Wire-to-Wire Connector | ||
环境参数
| 工作温度 | :85°C | ||
