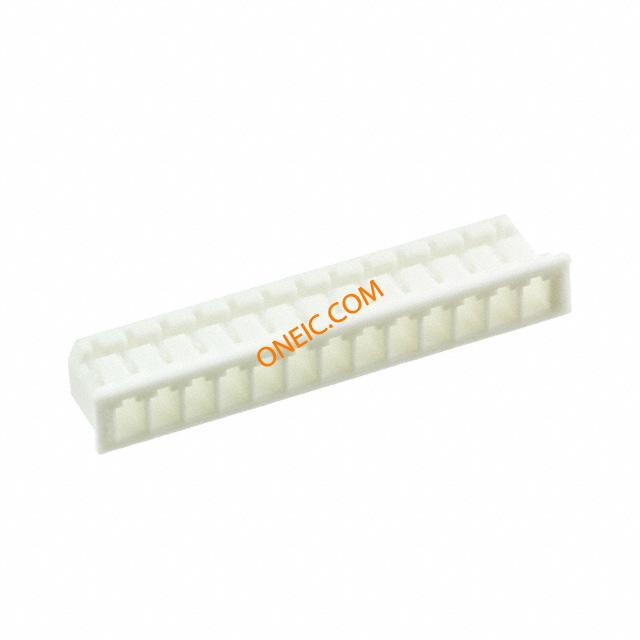

51004-1300
| 制造商 | |
| 描述 | CONN RCPT HOUSING 2MM 13POS SGL Headers & Wire Housings 2MM W-T-B HSG 13P 2.00mm Pitch MicroBlade™ Wire-to-Board Housing, Friction Lock, 5.80mm Height, 13 Circuits |
| 分类 |
商业参数
| 商标名 | MicroBlade | 零件号别名 | 0510041300 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 2 A | ||
机械参数
| 颜色 | Natural | 间距 | 0.079" (2.00mm) |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | Polyester |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 13 | 接触件端接 | Crimp |
| 位数 | 13 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | 51004 |
| 产品子类型 | Receptacles / Sockets - Housings | ||
文档与媒体
相关型号
0500118000
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG CRIMP TIN 0500118000

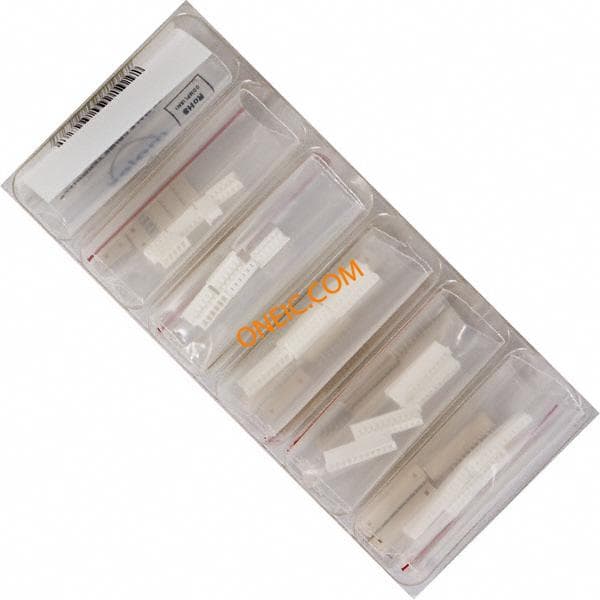

76650-0109
molex
COMPONENT KITS, WIRE TO BOARD KIT 11,13,5,6,9POS 2A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 2MM PITCH 125V 24-30 WIRE SIZE KIT CONN MICROBLADE Headers & Wire Housings MICROBLADE KIT VERTICAL Kit Description:Friction Lock Vertical Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:150
0500118100
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 24-30AWG CRIMP TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 24÷30AWG; MicroBlade; crimped; for cable; 2A

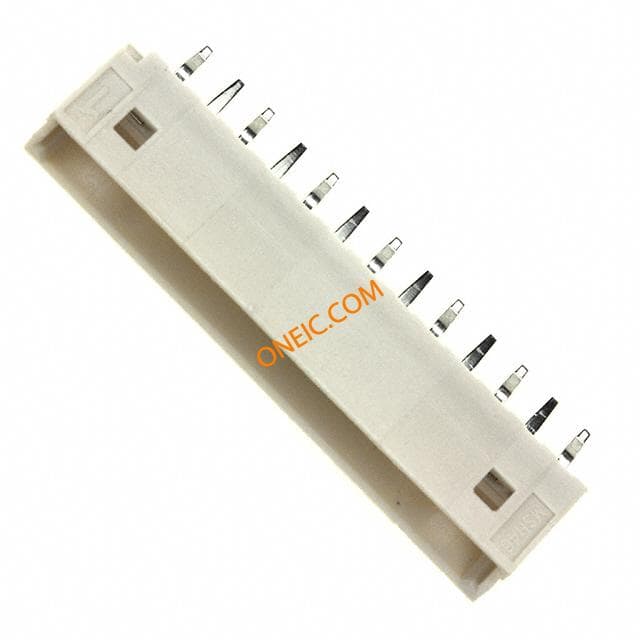

0530141310
Molex
Conn Shrouded Header HDR 13 POS 2mm Solder ST Thru-Hole Bag CONN HEADER 2MM 13POS TIN

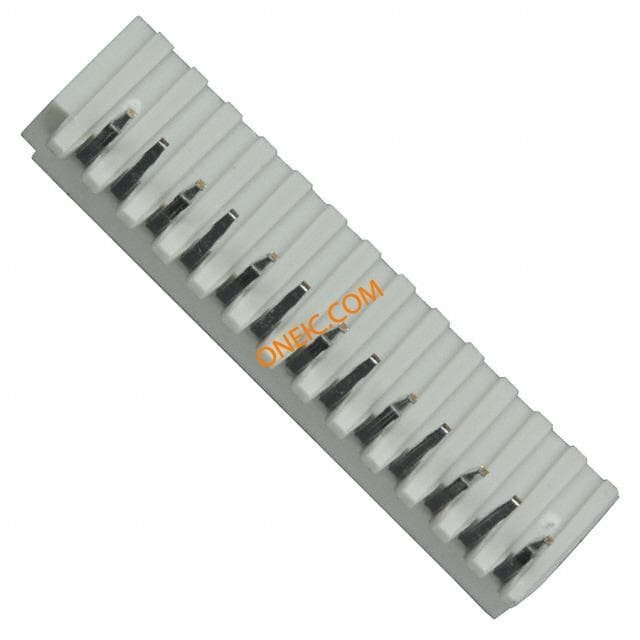

53015-1310
Molex Connector Corporation
CONN HEADER 2MM 13POS RT ANG TIN Headers & Wire Housings 2.00 MM WIRE-TO-BOAR Conn Shrouded Header HDR 13 POS 2mm Solder RA Thru-Hole Bag
