点击放大查看

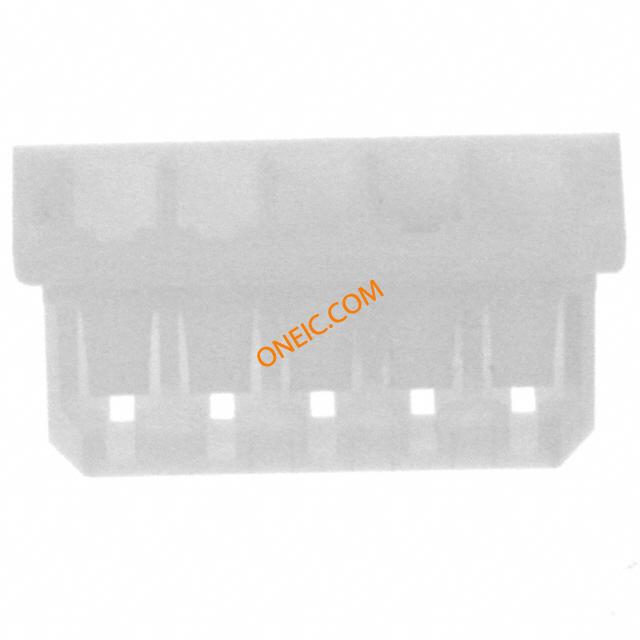

51004-0500
| 制造商 | |
| 描述 | CONN RCPT HOUSING 2MM 5POS SGL Housing,rcp,MicroBlade,2.0mm,LoPro,5way Headers & Wire Housings 2MM W-T-B HSG 5P friction lock Conn Housing RCP 5 POS 2mm Crimp ST Cable Mount Bag HEADER, WIRE TO BOARD FEMALE Conn; Term Blk; PCB; Plug Assy; 5; 2mm; Friction Lock; 34-24 AWG; 0.5-2.0A; 500V Molex MICROBLADE 系列 2mm 节距 5 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | MicroBlade | 零件号别名 | 0510040500 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Not Applicable | 海关税号 | 85365005 |
电气参数
| 量程（°/s） | :MOLEX - MicroBlade 51004 Series | 最大额定电流 | 2 A |
机械参数
| 颜色 | Natural | 深度 | 5.8mm |
| 间距 | 0.079" (2.00mm) | 长度 | 12mm |
| 重量 | 0.027 | 材料（通用） | 53014, 53015, 53025 MicroBlade Headers |
| 包装方式 | Bulk | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 引脚间距 | :2mm |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | :- | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | PBT |
| 主要材料 | PCB | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 5 |
| 接触件端接 | Crimp | 位数 | 5 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Pluggable |
| 连接器性别 | Female | 系列 | 51004 |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | MicroBlade Wire-to-Board Connector |
文档与媒体
相关型号
0530140510
molex
Conn Shrouded Header HDR 5 POS 2mm Solder ST Thru-Hole Bag CONN HEADER 2MM 5POS TIN
0530150510
molex
Conn Shrouded Header HDR 5 POS 2mm Solder RA Thru-Hole Bag CONN HEADER 2MM 5POS RT ANG TIN
0500118000
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG CRIMP TIN 0500118000

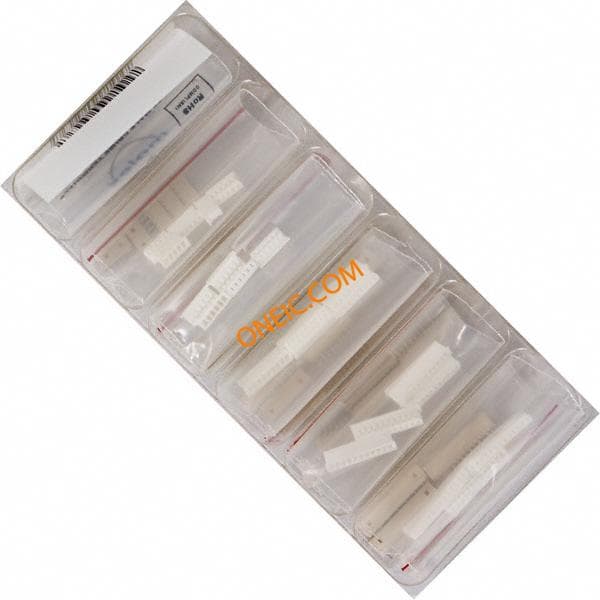

76650-0109
