点击放大查看

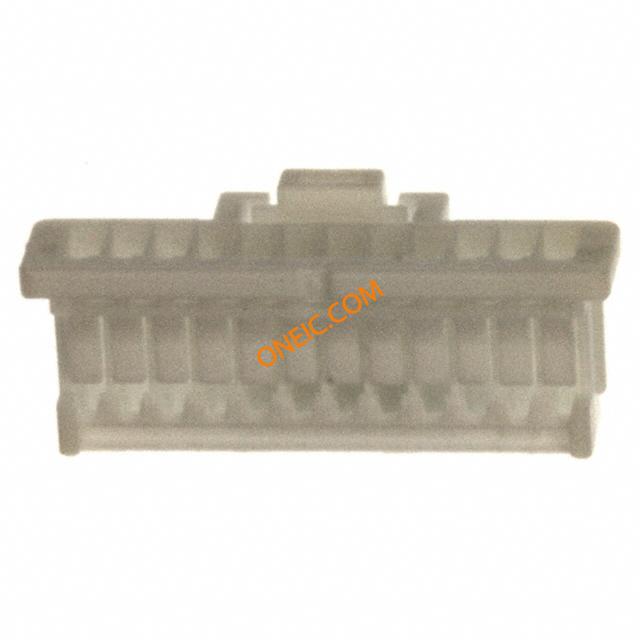

501330-1200

制造商	Molex, LLC
描述	CONN RCPT 1MM VERT 12POS 12w single row crimp housing 1mm Headers & Wire Housings 1.0 WtB 12Ckt Female Housing Vert 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Positive Lock, 12 Circuits HOUSING, 1.0MM, PICO-CLASP, 12WAY Crimp Housing for Pitch1 mm Poles 1 x 12 Pico-Clasp™, 501330-1200, Molex Molex PICO-CLASP 系列 1mm 节距 12 路直母压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Pico-Clasp	产品类别	Headers & Wire Housings
标准包装数量	1	工厂包装数量	1000

合规参数

RoHS	Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85366930

电气参数

量程（°/s）

:MOLEX - Pico-Clasp 501330 Series

最大额定电流

1 A

机械参数

颜色	White	深度	5.5mm
间距	0.039" (1.00mm)	宽度	4.76mm
长度	13.7mm	重量	0.05
包装方式	Bulk	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	:-	紧固类型	Locking Ramp
安装样式	Wire	排数	1
触头材料	:-	壳体材料	Nylon
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	12	接触件端接	Crimp
位数	12

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	501330	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	Pico-Clasp Wire-to-Board Connector

相关型号

501331-1207

molex

Conn Shrouded Header HDR 12 POS 1mm Solder ST SMD Embossed T/R Molex 501331 Series 1mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 1.0 WtB 12Ckt StrWaferAssyEmbsTpPk HEADER, 1.0MM, PICO-CLASP, 12WAY Header, straight Pitch1 mm Poles 1 x 12 Pico-Clasp™, 501331-1207, Molex Molex PICO-CLASP 系列 1mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 1A , 表面安装

¥2.5840

详情

501334-0100

molex

Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings 1.0 WtB Crimp Term 28-32 AWG Loose TERMINAL, PICO-CLASP, 28-32AWG CONTACT, FEMALE, 32-28AWG, CRIMP Crimp socket 1 A Female 32...28 AWG, 501334-0100, Molex Molex PICO-CLASP 系列母压接触点, 压接或压缩, 镀锡触点

¥0.1972

详情

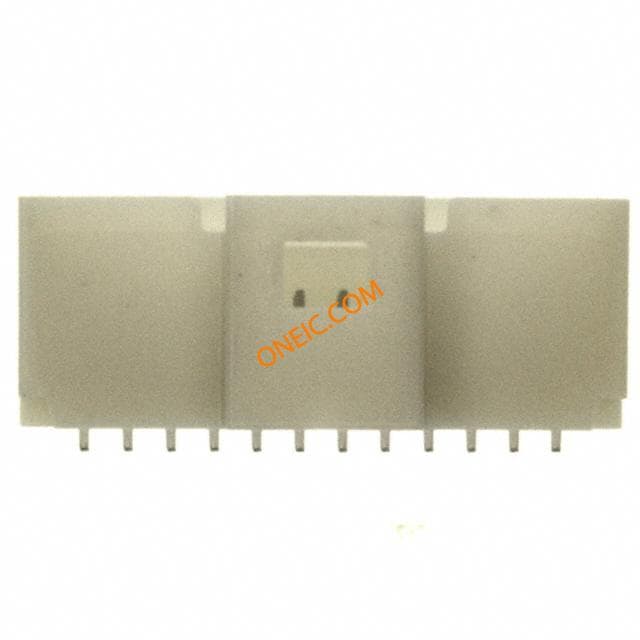

501568-1207

molex

Conn Shrouded Header HDR 12 POS 1mm Solder RA SMD Embossed T/R CONN HEADER 1MM 12POS SMD R/A Molex 501568 Series 1mm Pitch 12 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 1.0 WtB 12Ckt R/AWaferAssyEmbsTpPk Molex PICO-CLASP 系列 1mm节距 12路 (2排) 直角 PCB 针座, 焊接端接, 1A , 表面安装

¥4.3316

详情

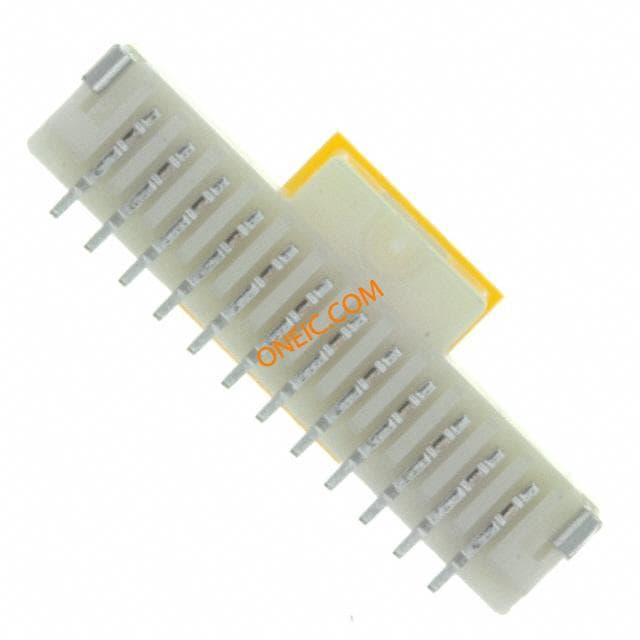

5013311207

Molex

Conn Shrouded Header HDR 12 POS 1mm Solder ST SMD Embossed T/R CONN HEADER 1MM 12POS SMD TIN 1.0WtB1-RowStrWaferAssyEmbsTpPkg12Ckt Socket; wire-board; male; PIN:12; 1mm; SMT; PICO-CLASP; 50V; 1A 12P PICOCLASP 1.00MM STRAIGHT

¥3.8617

详情

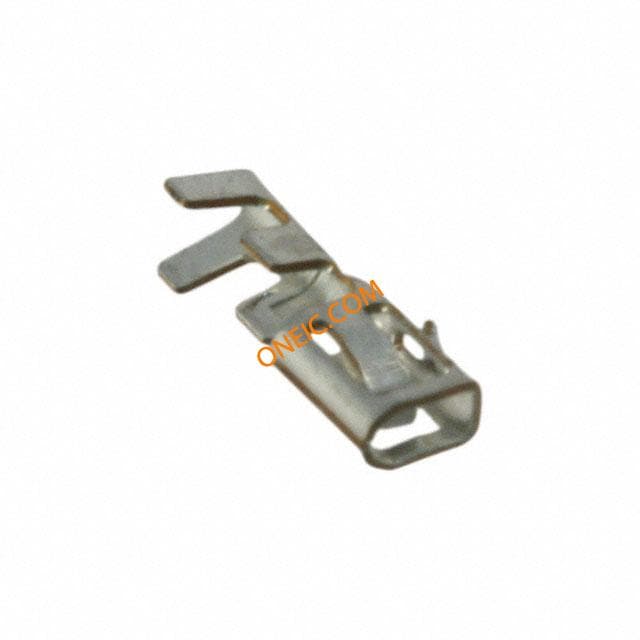

5013340100
