点击放大查看

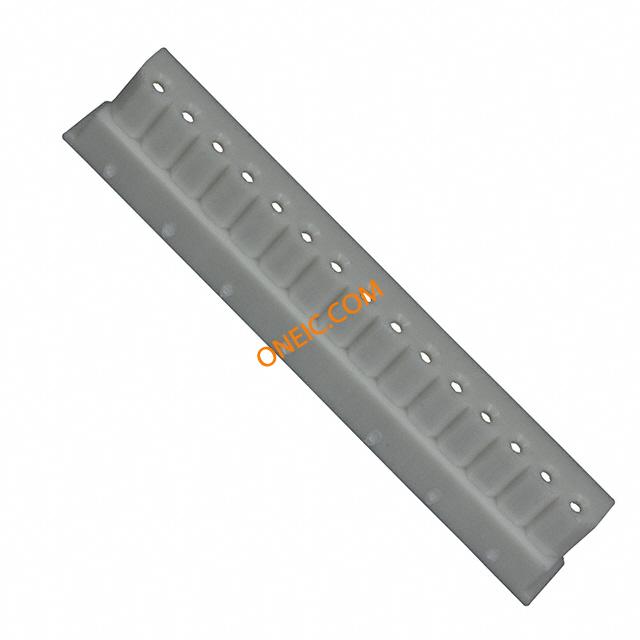

50-37-5153
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 15POS 2.5MM SHROUD Crimp Housing 2.5mm SPOX, F/Lock,15w Headers & Wire Housings 2.5MM HSG 15P FRICTION LOCK 2.50mm Pitch SPOX™ Wire-to-Board Crimp Housing, Friction Lock, 15 Circuits Molex SPOX 系列 2.5mm 节距 15 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | SPOX | 零件号别名 | 0050375153 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 深度 | 3.9mm | 间距 | 0.098" (2.50mm) |
| 宽度 | 8mm | 长度 | 39.9mm |
| 包装方式 | Bulk | 方向 | 直 |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 15 | 接触件端接 | Crimp |
| 位数 | 15 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 5264 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 基础产品编号 | 5264 |
| 输出配置 | Free Hanging (In-Line) | 适用产品/相关产品 | SPOX Wire-to-Board Connector |
相关型号
0008701039
molex
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE 22-28AWG 2.5MM TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel
0008701040
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-28AWG CRIMP Conn Contact F 1 POS Crimp ST Cable Mount Bag
0039000160
molex
2.5 LOW PROFILE CRIMP RECEPTACLE Contact SKT Crimp ST Cable Mount Reel 2.5 LOW PROFILE CRIMP REC

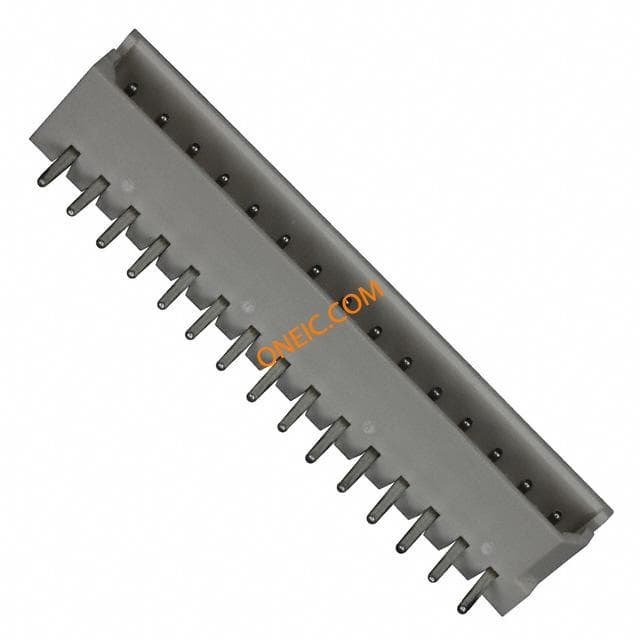

22-05-7155
Molex Connector Corporation
CONN HEADER 15POS 2.5MM R/A TIN Headers & Wire Housings 15P RT ANGL SPOX HDR

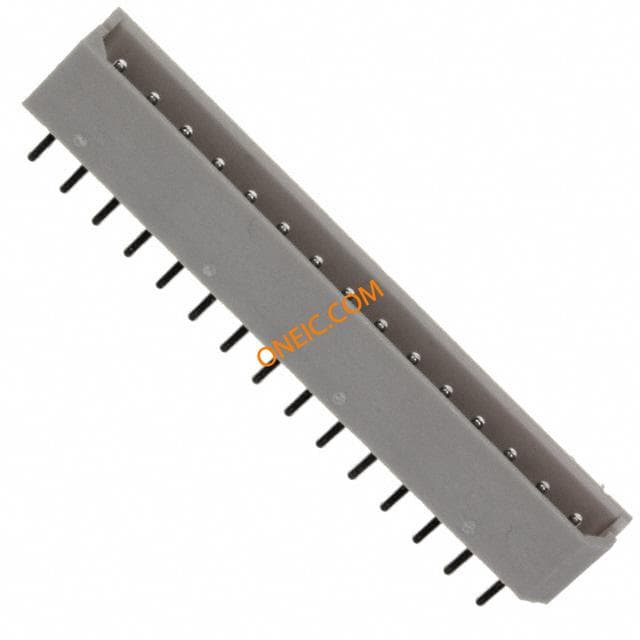

22-03-5155
