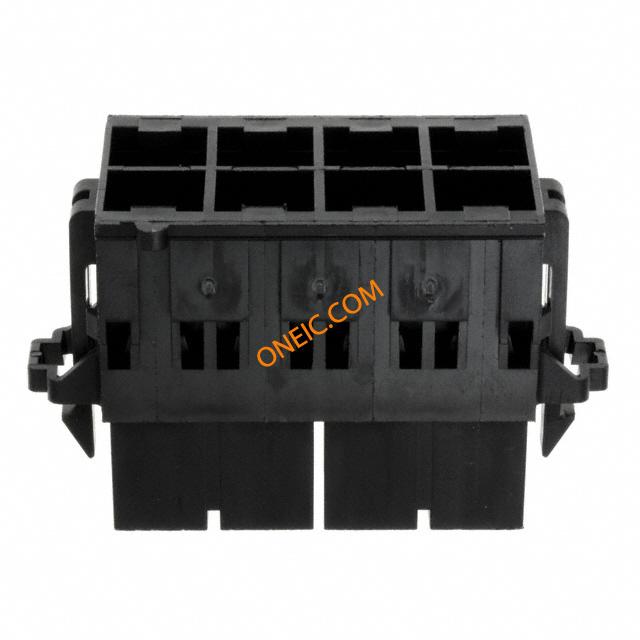

43914-1102
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 8POS 10MM VERT CONN RECEPT 8POS 10MM F/H Headers & Wire Housings MINI-FIT SR. RECEPT Conn Housing RCP 8 POS 10mm Crimp ST Bag Mini-Fit Sr. Dual Row Receptacle Housing (Free Hanging) 8 Circuits |
| 分类 |
商业参数
| 商标名 | Mini-Fit Sr. | 零件号别名 | 0439141102 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 7 A |
机械参数
| 颜色 | Black | 间距 | 0.394" (10.00mm) |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 主要材料 | Rectangular | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Receptacle |
| 系列 | 43914 | 制造商全称 | Mini-Fit, Sr. |
| 产品子类型 | Receptacles / Sockets - Housings | 电路数 | 8 |
文档与媒体
相关型号
0428150011
Molex, LLC
. 0428150011 - Socket Contact Tin 10-12 AWG Crimp Power from Molex. from now!

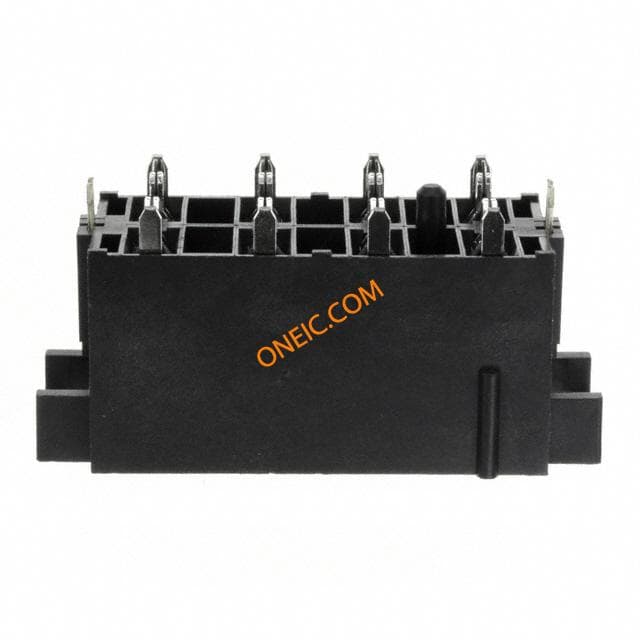

0439151102
Molex, LLC
. 0439151102 - Connector Header Through Hole 8 position 0.394" (10.00mm) from Molex. from now!
0428150031
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FMLE 8AWG TIN CRIMP TR CONN TERM FEMALE 8AWG TIN CRIMP
42815-0011
Molex
Headers & Wire Housings SOCKET 10 12 AWG Contact SKT Crimp ST Cable Mount Reel CONTACT, SOCKET, 12-10AWG, CRIMP CONTACT, SOCKET, 10AWG TO 12AWG, CRIMP Crimp terminal, female
42815-0031
Molex
Headers & Wire Housings SOCKET 8 12+12 AWG CONTACT, SOCKET, 8AWG, CRIMP, PK10 Mini-Fit Sr. Terminals, Female, 8 AWG, Tin Plated Mini-Fit Sr. Female Crimp Terminal, Tin, 8awg 2500 reel Crimp socket, reel Female 8 AWG, 42815-0031, Molex
42815-0042
Molex
Headers & Wire Housings MFS FEM TERM Headers & Wire Housings MN-FT TERM 14-16G F Reel of 2500 Contact SKT Crimp ST Cable Mount Reel CONTACT, CRIMP, SOCKET, 16-14AWG Molex MINI-FIT SR. 系列 母 压接触点
42815-0041
Molex
Headers & Wire Housings REELED TERMINALS CONN SOCKET 14-16AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Reel Mini-Fit Sr. Connectors TERMINALS 14-16awg ea Mini-Fit Sr. Connectors REELED TERMINALS 14-16 awg reel
0428150032
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FML 8AWG GOLD CRIMP TR CONN TERM FEMALE 8AWG GOLD CRIMP
0428150042
Molex, LLC
. 0428150042 - Socket Contact Gold 14-16 AWG Crimp Power from Molex. from now!
0428150012
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 10-12AWG GOLD CONN TERM FMALE 10-12AWG GOLD TR Contact; female; 10÷12AWG; Mini-Fit Sr; gold plated; crimped; 50A

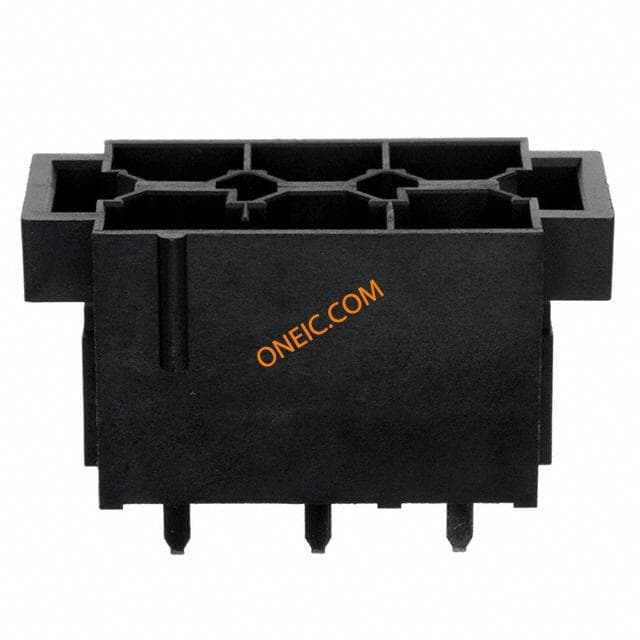

0439151107
