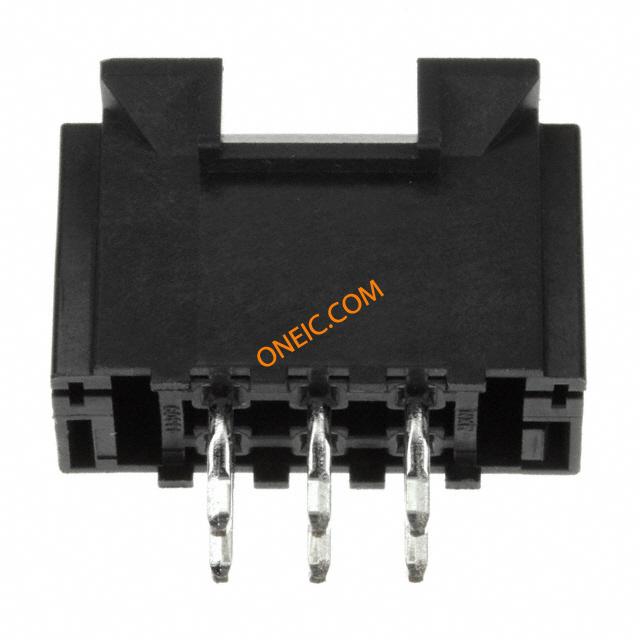

点击放大查看
43879-0023
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS 4.2MM DUAL TIN Headers & Wire Housings VERT MINIFIT CPI 6P dual row interface Conn Power HDR 6 POS 4.2mm Press Fit ST Thru-Hole 6 Terminal 1 Port Tray MINI-FIT CPI HDR FOR .094PCB 6CKT TIN MINI-FITCPIHDRFOR.094PCB6CKTTIN |
| 分类 |
商业参数
| 商标名 | Mini-Fit CPI | 零件号别名 | 0438790023 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 550 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 输出数量 | 6 |
| 最大额定电流 | 7 A | ||
机械参数
| 颜色 | Black | 间距 | 0.165" (4.20mm) |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Press-Fit | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 行程角度 | Straight |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 端接样式 | Through Hole |
| 触点数 | 6 | 位数 | 6 |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Shrouded | 系列 | 43879 |
| 产品子类型 | Headers | 电路数 | 6 |
| 加载位置数 | All | ||
