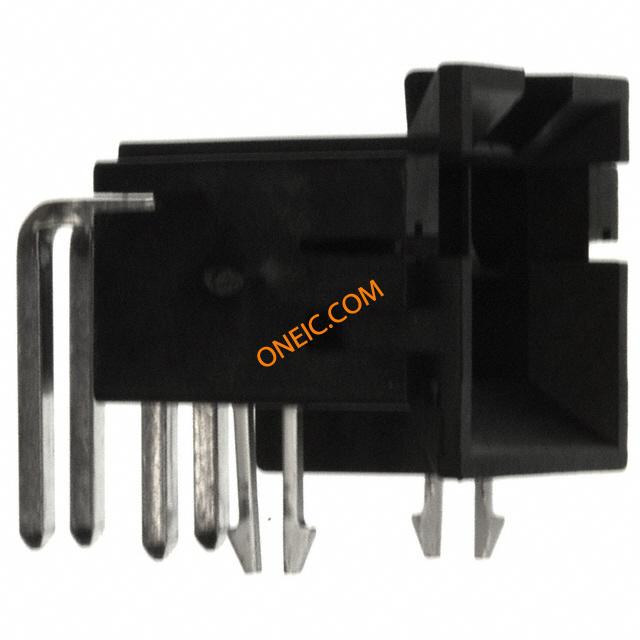

点击放大查看
43810-0001
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 4POS R/A W/CLIP TIN Headers & Wire Housings 4POS R/A SMT HDR Conn Power M 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Tray |
| 分类 |
商业参数
| 商标名 | Mini-Fit SMC | 零件号别名 | 0438100001 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 384 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 8 A |
机械参数
| 颜色 | Black | 间距 | 0.165" (4.20mm) |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 触点数 | 4 |
| 位数 | 4 | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Shrouded | 系列 | 43810 |
| 产品特性 | Board Lock | 产品子类型 | Headers |
| 加载位置数 | All | ||
