点击放大查看
39-01-4050
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 5POS VERT SINGLE 5 way single row receptacle,Mini-Fit Jr Headers & Wire Housings 5 CKT RCPT HOUSING Conn Housing RCP 5 POS 4.2mm Crimp ST Bag Mini-Fit, Jr. Receptacle; 94V-2; 5 Circuit Molex MINI-FIT JR. 系列 4.2mm 节距 5 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039014050 5557-05R2 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 12 A, 8 A |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 颜色 | Natural | 深度 | 19.6mm |
| 间距 | 0.165" (4.20mm) | 长度 | 22.2mm |
| 重量 | 0.045856 oz | 包装方式 | Bulk |
| 导线线规 | 20-16 | 方向 | 直 |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 1 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 5557 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 基础产品编号 | 5557 |
| 输出配置 | Free Hanging (In-Line) | 适用产品/相关产品 | Mini-Fit Jr. Receptacle |
文档与媒体
相关型号
0442810004
Molex, LLC
. 0442810004 - 10 Position Rectangular Plug Connector Solder Gold from Molex. from now!
0039303055
molex
Conn Wire to Board HDR 5 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 5 POS 4.2mm Solder RA Thru-Hole 5 Terminal 1 Port Bag CONN HEADER 5POS 4.2MM R/A TIN
0039302050
molex
Conn Wire to Board HDR 5 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 5 POS 4.2mm Solder ST Thru-Hole 5 Terminal 1 Port Tray CONN HEADER 5POS 4.2MM VERT TIN
0039302056
molex
Conn Wire to Board HDR 5 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 5 POS 4.2mm Solder ST Thru-Hole 5 Terminal 1 Port Tray CONN HEADER 5POS 4.2MM VERT TIN
0039303057
molex
Conn Wire to Board HDR 5 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 5 POS 4.2mm Solder RA Thru-Hole 5 Terminal 1 Port Bag CONN HEADER 5POS 4.2MM R/A GOLD
0039000213
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0039000180
molex
Contact SKT Crimp ST Cable Mount Loose Piece MINI FIT JR. TERM. BL/PT/FORM
39-01-4056
molex
Conn Housing PL 5 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG 5POS VERT SINGLE 5w s/row free hanging plug,Mini-Fit Jr Headers & Wire Housings 5 CKT PLUG HOUSING 4.20mm Pitch Mini-Fit Jr.™ Plug Housing, Single Row, without Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 5 Circuits Conn Housing M 5 POS 4.2mm Crimp ST Cable Mount Bag .165 mini fit jr plug housing, single row. panel mount 5 circuit .165minifitjrplughousing,singlerow.panelmount5circuit Molex MINI-FIT JR. 系列 4.2mm 节距 5 路 直 公 电缆安装 压接连接器外壳
71233-0007
Molex
Headers & Wire Housings Obsolete CONN HEADER 5POS .165 RT ANG TIN Conn Power HDR 5 POS 4.2mm Solder RA Thru-Hole 5 Terminal 1 Port Tray
0039000217
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 16AWG TIN

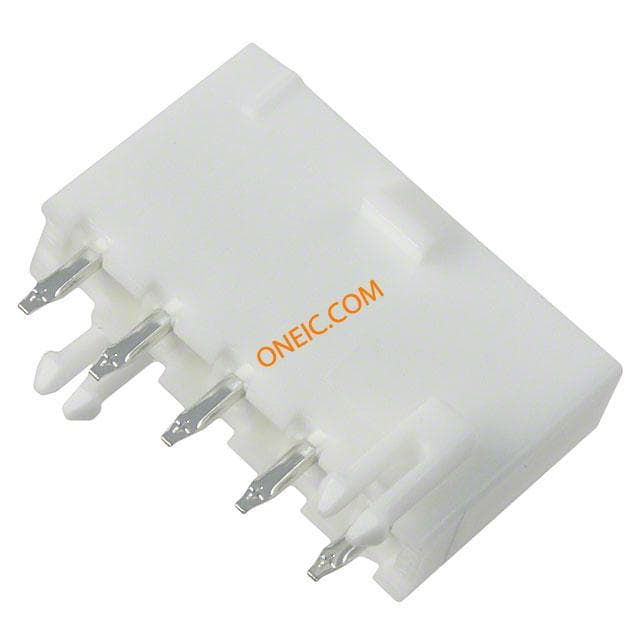

0444720502
Molex, LLC
. 0444720502 - Connector Header Through Hole 5 position 0.165" (4.20mm) from Molex. from now!
0039000155
Molex
Contact SKT Crimp ST Cable Mount
39-00-0154
molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG 30GOLD CONTACT, CRIMP, SOCKET, 24-18AWG
0039303056
Molex
Conn Power HDR 5 POS 4.2mm Solder RA Thru-Hole 5 Terminal 1 Port Bag CONN HEADER 5POS 4.2MM R/A TIN
0015271501
Molex
MINIFIT JR RA SR /PEG 15AU V-2 5CKT CONN HEADER 5POS R/A GOLD
71231-0007
Molex Connector Corporation
CONN HEADER 5POS .165 VERT TIN
39-01-4052
Molex Connector Corporation
CONN PLUG 5POS VERT PANEL MOUNT Plug Housing 4.20mm Dual row,5way Headers & Wire Housings 5 CKT PLUG HOUSING Conn Housing PL 5 POS 4.2mm Crimp ST Panel Mount Bag CONNECTOR HOUSING Molex MINI-FIT JR. 系列 4.2mm 节距 5 路 直 公 面板安装 压接连接器外壳

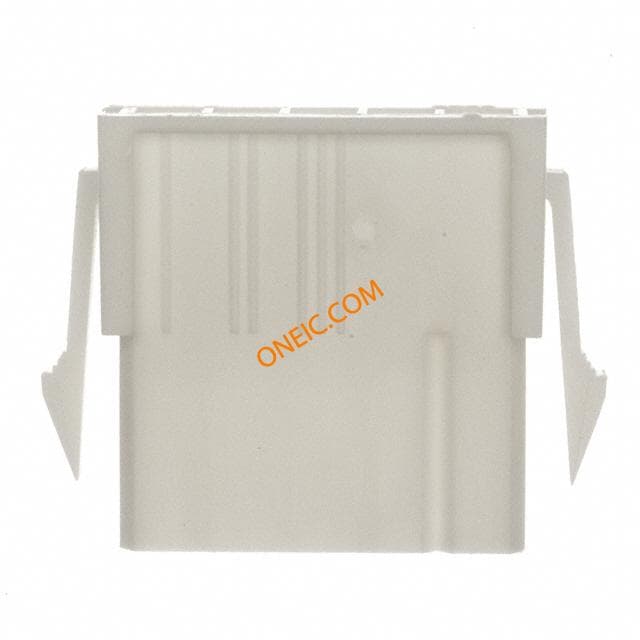

39-01-4053
Molex Connector Corporation
CONN PLUG 5POS VERT PANEL MOUNT Plug Housing 4.20mm Dual row,5way Headers & Wire Housings MINI-FIT JR. PLUG 94 Conn Housing PL 5 POS 4.2mm Crimp ST Panel Mount Bag Molex MINI-FIT JR. 系列 4.2mm 节距 5 路 直 公 面板安装 压接连接器外壳
0460182541
Molex Inc
CONN TERM SOCKET 22-24AWG GOLD 0460182541

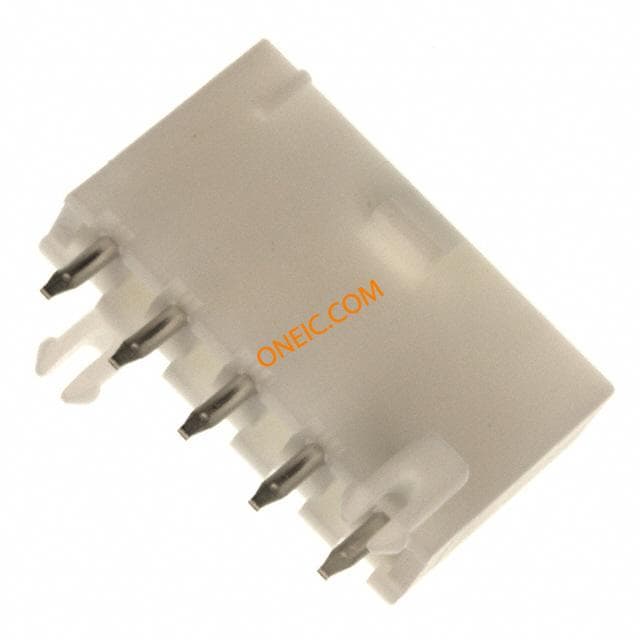

39-30-2058
