| 制造商 | Molex, LLC |

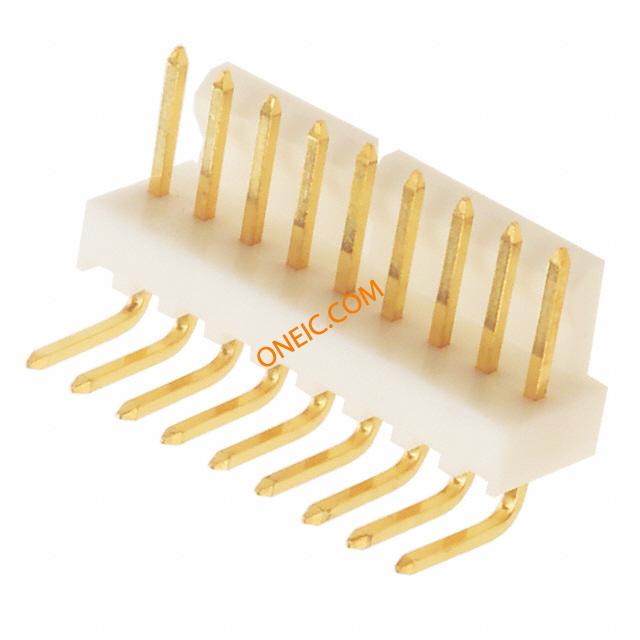

| 描述 | CONN HEADER 9POS .100 R/A GOLD Molex 7478 Series 2.54mm Pitch 9 Way 1 Row Right Angle PCB Header, Solder Termination, 4A Headers & Wire Housings R/A PCB HDR 9P GOLD FRICTION LOCK Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Bag Molex KK 254 系列 2.54mm节距 9路 (1排) 直角 PCB 针座, 焊接端接, 4A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022122094 A-7478-09A501 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 4A |
机械参数
| 颜色 | White | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 方向 | 直角 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 紧固类型 | Friction Lock |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 触点数 | 9 |
| 位数 | 9 | 接触长度 - 配合 | 0.264" (6.70mm) |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Wire to Board | 系列 | 7478 |
| 覆盖范围 | 无覆盖 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 基础产品编号 | 7478 |
| 加载位置数 | All | ||
