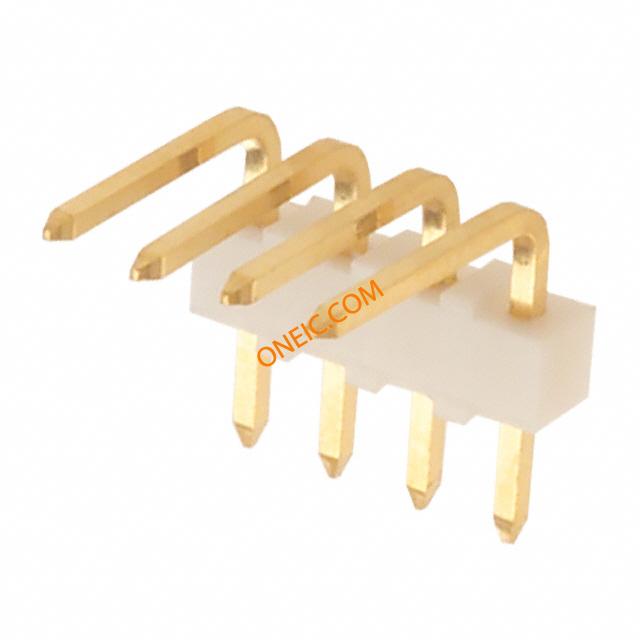

点击放大查看
22-12-2041
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 4POS .100 R/A GOLD Headers & Wire Housings 4 CKT R/A HEADER Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Bag |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022122041 A-4094-04A501 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 4 A |
机械参数
| 颜色 | White | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 触点数 | 4 | 位数 | 4 |
| 接触长度 - 配合 | 0.369" (9.37mm) | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 类型 | Pin Strip | 系列 | 4094 |
| 产品子类型 | Headers | 加载位置数 | All |
