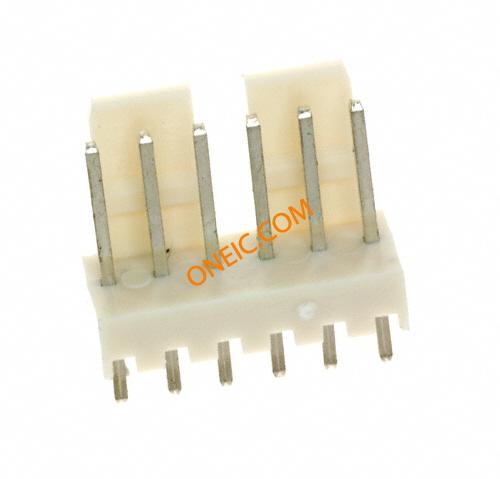

22-04-1061
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS 2.5MM VERT TIN Molex 5045 Series 2.5mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings POLARIZING LK HDR 6P straight Conn Wire to Board HDR 6 POS 2.5mm Solder ST Thru-Hole Bag HEADER, SQUARE PIN, 2.5MM, 6WAY Molex Mini-Latch 系列 2.5mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022041061 5045-06A |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 8000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - KK 5045 Series | 额定电压 | 250 V ac/dc |
| 工作电压 | :250V | 接触电阻 | :20mohm |
| 介电强度 | :1500V/m | 最大额定电流 | 3A |
机械参数
| 颜色 | Natural | 间距 | 0.098" (2.50mm) |
| 重量 | 0.066 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.5mm | 安装类型 | Through Hole |
| 释放力 | :0.5N | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 紧固类型 | Friction Lock |
| 排数 | 1 | 封装形式 | :White Nylon UL94V-0 |
| 插入力 | :2N | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 触点数 | 6 | 接触件端接 | :Through Hole Vertical |
| 位数 | 6 | 安装孔直径 | :1.19mm |
| 接触长度 - 配合 | 0.295" (7.49mm) | 接触镀层厚度 | 200µin (5.08µm) |
| 第一连接器安装类型 | :Straight | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | :Header |
| 系列 | 5045 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
