点击放大查看

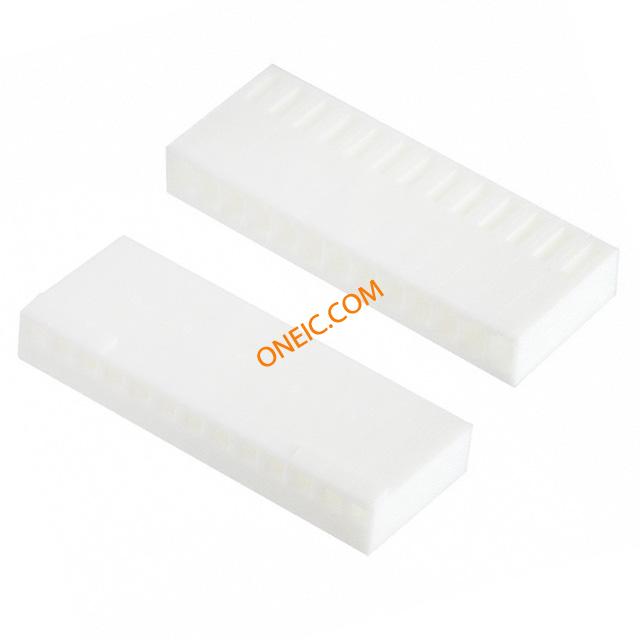

22-01-2137

制造商	Molex, LLC
描述	CONN HOUSING 13POS .100 W/RAMP Headers & Wire Housings 13P HOUSING W/RAMP Conn Housing F 13 POS 2.54mm Crimp ST Cable Mount Bag
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0022012137 22-01-2137-PB 2695-13R
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1000

合规参数

RoHS

RoHS Compliant

机械参数

颜色	White	间距	0.100" (2.54mm)
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Locking Ramp	安装样式	Wire
排数	1	壳体材料	Nylon
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	13	接触件端接	Crimp
位数	13

产品信息

备注	Contacts Not Provided	系列	2695
产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

22-01-2137

PDF 文档

0022012137_CRIMP_HOUSINGS.pdf

相关型号

0008500113

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel

¥0.1340

详情

0022284131

molex

Conn Unshrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 13POS .100 VERT TIN

¥1.1934

详情

0008560109

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG GOLD

¥1.1880

详情

0008550101

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG GOLD

¥0.4094

详情

0022288132

molex

Conn Unshrouded Header HDR 13 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 13POS .100 R/A GOLD

¥2.9376

详情

0022288131

molex

Conn Unshrouded Header HDR 13 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 13POS .100 R/A TIN

¥3.2667

详情

0022284134

molex

Conn Unshrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 13POS .100 VERT GOLD

¥1.6653

详情

暂无图片

0022288130

molex

Conn Unshrouded Header HDR 13 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 13POS .100 R/A TIN

¥3.1498

详情

0022288133

molex

Conn Unshrouded Header HDR 13 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 13POS .100 R/A GOLD

¥3.9161

详情

22-28-4135

molex

Conn Unshrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 13POS .100 VERT GOLD

¥1.1934

详情

22-28-4138

molex

Conn Unshrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 13POS .100 VERT GOLD Headers & Wire Housings KK 100 Hdr Assy Bkwy Bkwy 13 Ckt 30 SGold

¥4.0664

详情

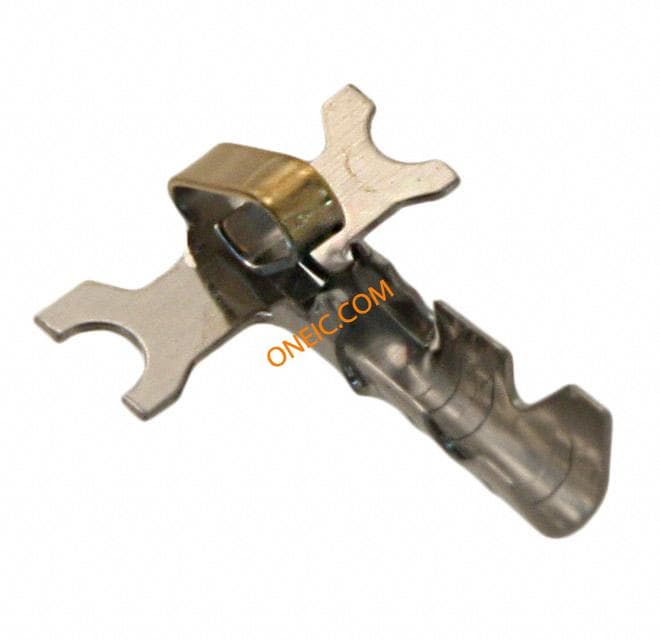

0008650105
