点击放大查看

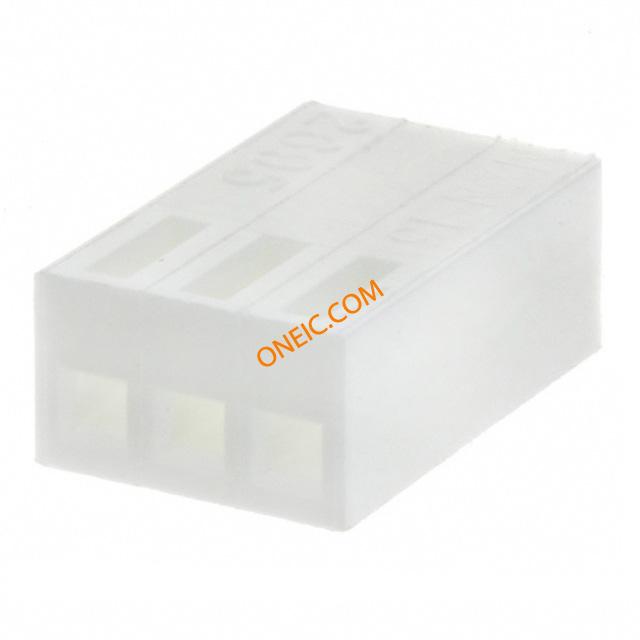

22-01-2031
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 3POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,3w Headers & Wire Housings 3 CKT TERM HOUSING Conn Housing F 3 POS 2.54mm Crimp ST Cable Mount Bag Housing; Crimp; 0.100 in.; 3; White Nylon Molex KK 254 系列 1 行 2.54mm 节距 3 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022012031 2695-03 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 连接器类型 - 电压输入 | Female | ||
机械参数
| 颜色 | White | 深度 | 12.7mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 4.82mm |
| 长度 | 8.18mm | 包装方式 | Bulk |
| 方向 | 直 | 触头类型 | Non Gendered |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 排数 | 1 | 壳体材料 | Nylon |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Crimp Housing |
| 连接器性别 | Female | 系列 | 2695 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 基础产品编号 | 2695 | 适用产品/相关产品 | KK Connector |
