15-38-8120
| 制造商 | Molex, LLC |
| 描述 | CONN FFC FEMALE 12POS .100 TIN FFC & FPC Connectors SL FFC/FPC Opt G Fem 12CKT TIN Conn IDC Connector F 12 POS 2.54mm IDT ST Cable Mount Tube |
| 分类 |
商业参数
| 商标名 | C-Grid | 零件号别名 | 0015388120 70430-0151 |
| 产品类别 | FFC & FPC Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 510 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 1 A, 2 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 端接方式 | IDC |
| 安装类型 | Vertical | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester, Glass Filled |
| 端接样式 | IDC | FFC/FCB厚度 | 0.30mm |
| 触点数 | 12 | 位数 | 12 |
| 接触镀层厚度 | 150µin (3.81µm) | ||
产品信息
| 连接器性别 | Female | 系列 | 70430 |
| 产品特性 | Latch Lock | 产品子类型 | Free Hanging |
环境参数
| 工作温度 | -40°C ~ 105°C | ||
文档与媒体
相关型号
0705430046
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tube CONN HDR VERT 12POS .100 TIN
0622020800
molex
FFC/SL TOOLING 2-20 CKT W/ TM42 PRESS TM-42 PRESS AND TERMINATION KIT FOR 110V APPLICATIONS FFC/SL TOOL 2-20 CKT W/ TM42
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0705530011
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 12POS .100 R/A GOLD
0701070011
molex
Conn Housing F 12 POS 2.54mm Crimp ST Bag CONN HOUSING MALE 12POS .100
0705430011
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 12POS .100 VERT GOLD

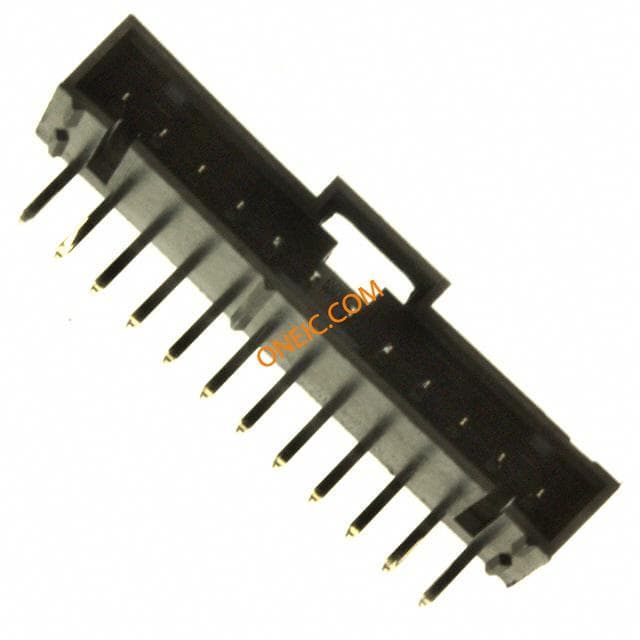

0705530046
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 12POS .100 TIN
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF
0705430116
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 12POS .100 VERT 30AU
0622007800
molex
MANUAL PRESS FOR MICRO-D BACKSHELL CRIMP TOOL KIT, 25 CIRCUITS Standard Manual Press For FFC ARBOR PRESS W/ FFC TOOLING
70545-0046
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 12POS .100 VERT 15AU Headers & Wire Housings VERT HDR TRI-PEG 12P single row

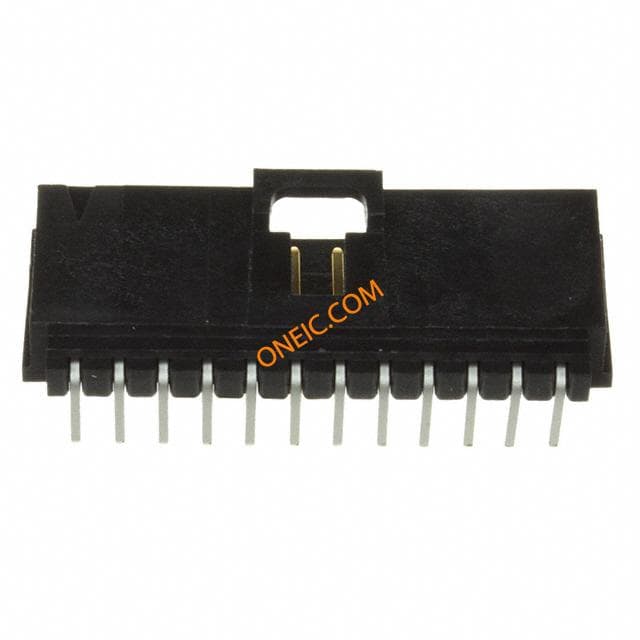

0705550046
Molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 12POS .100 R/A 15AU

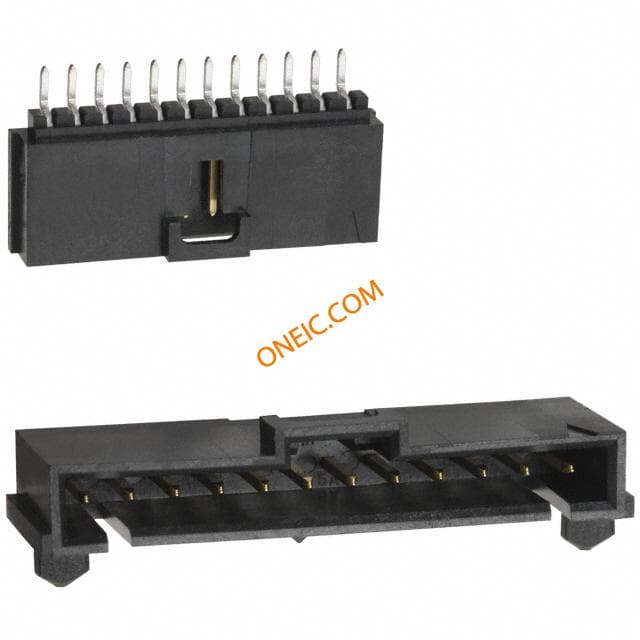

0015912125
Molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA SMD Tube CONN HEADER 12POS .100 R/A SMD
70555-0011
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 12POS .100 R/A TIN Headers & Wire Housings 2.54MM SR RA 12P HDR SN SHROUDED 2.54mm Pitch SL™ Header, Single Row, Right Angle, 3.05mm Pocket, Shrouded, with Press-fit Plastic Peg, 12 Circuits, Tin (Sn) Plating

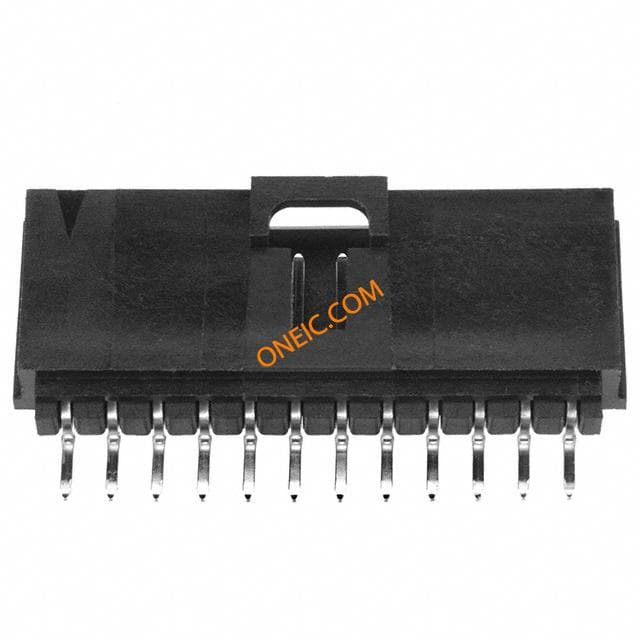

0015913124
Molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA SMD Tube CONN HEADER 12POS .100 R/A SMD

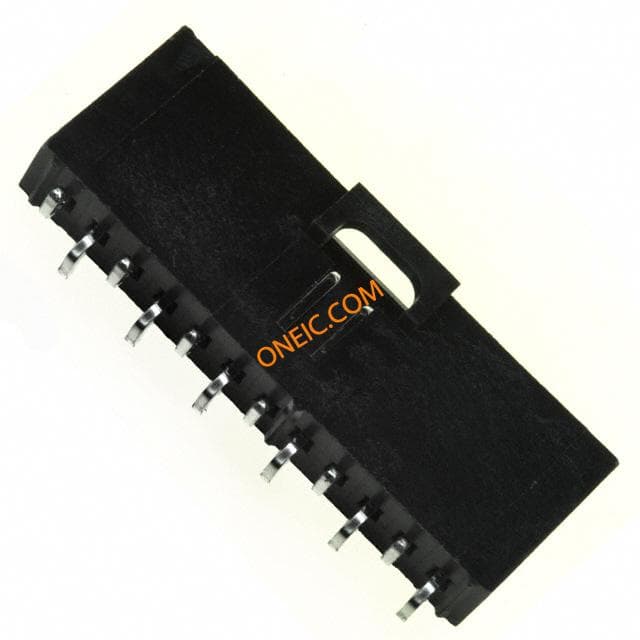

74099-0012
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST SMD Tube CONN HEADER .100 VERT 12POS SMD Headers & Wire Housings SL SMT V HDR SHRD 12CKT TIN
74099-1012
Molex Connector Corporation
CONN HEADER .100 VERT 12POS SMD Headers & Wire Housings 2.54 WIRE/BOARD HDR Vertical 12 CKT Conn Shrouded Header HDR 12 POS 2.54mm Solder ST SMD Tube
70545-0011
Molex Connector Corporation
CONN HEADER 12POS .100 VERT TIN Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tube

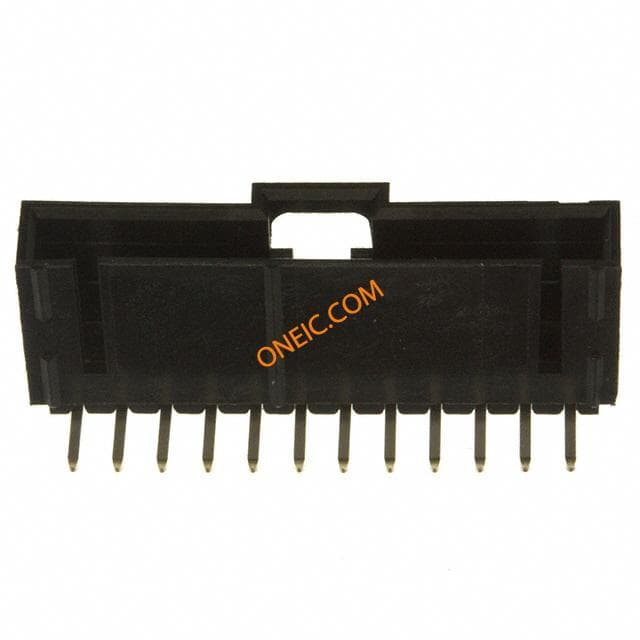

70553-0116
