点击放大查看

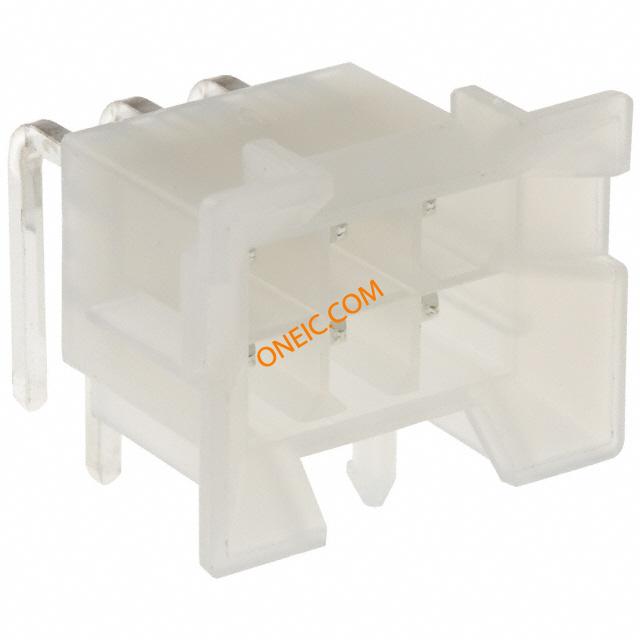

15-24-6060
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 6P Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray MINIFIT BMI RA HDR TIN V-2 |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015246060 A-42404-06A1 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 680 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 12 A, 8 A |
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 行程角度 | Right-Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 触点数 | 6 | 位数 | 6 |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Pin Header | 系列 | 42404 |
| 产品特性 | Board Lock | 制造商全称 | Mini-Fit BMI |
| 产品子类型 | Header Assemblies | 电路数 | 6 |
| 加载位置数 | All | ||
