点击放大查看

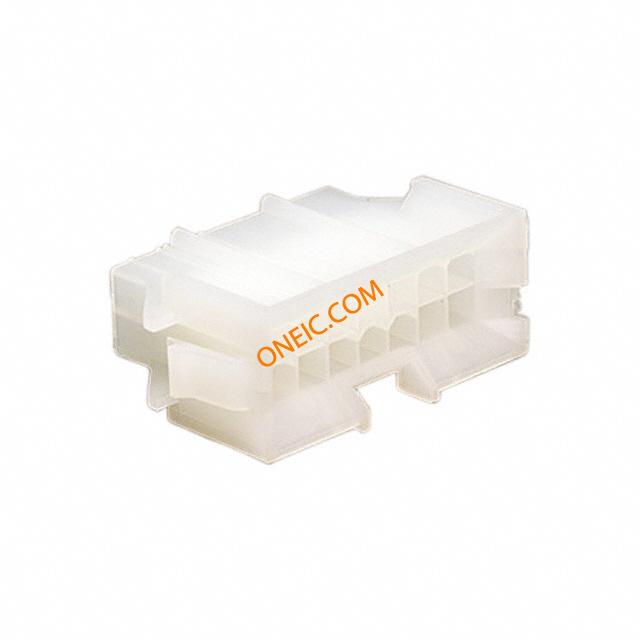

15-06-0145
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 14POS W/PANEL MNT EARS Headers & Wire Housings PLUG DUAL ROW 14POS w/panel mount ears Conn Housing PL 14 POS 4.2mm Crimp ST Bag |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015060145 42475-1411 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 6 A, 9 A | 连接器类型 - 电压输入 | Male |
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Male Pin | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Plug | 排数 | 2 |
| 壳体材料 | Nylon | 触点数 | 14 |
| 接触件端接 | Crimp | 位数 | 14 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 系列 | 42475 | 产品子类型 | Wire Housings |
| 应用细节 | Power, Wire-to-Wire, Wire-to-Board | ||
文档与媒体
相关型号
0015248152
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray CONN RCPT 14POS VERT DUAL
0039000121
molex
Contact PIN Crimp ST Cable Mount Bag MINIFIT TERM CRP MALE L BS TIN
0039000219
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG 30GOLD CONN TERM MALE 18-24AWG GOLD
0039012140
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL CONNECTOR HOUSING, RECEPTACLE, 14POS, 2ROW, 4.2MM
0039012145
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL Conn Housing F 14 POS 4.2mm Crimp ST Cable Mount Bag
0039000061
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG TIN
39-00-0224
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 16AWG GOLD CRIMP Headers & Wire Housings CRIMP TERMINAL 16 AWG
0460123241
Molex
CONTACT PIN CRIMP ST CABLE MOUNT REEL MF PLUS HCS CRIMP TERM MALE
0460121242
Molex, LLC
. 0460121242 - Pin Contact Gold 18-20 AWG Crimp from Molex. from now!
0039000049
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 22-28AWG TIN
0460121142
Molex
Contact PIN Crimp ST Cable Mount Bag MF PLUS HCS CRIMP TERM MALE
0015247140
Molex
Conn Power RCP 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN HEADER 14POS 4.2MM VERT TIN
0039000128
Molex
Contact PIN Crimp ST Cable Mount Reel MINIFIT TERM CRP MALE C BZ TIN
0424741441
Molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag MINIFIT JR BMI PMRCPT DLRW V-0
15-24-7141
Molex Connector Corporation
CONN HEADER 14POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 14P DUAL ROW

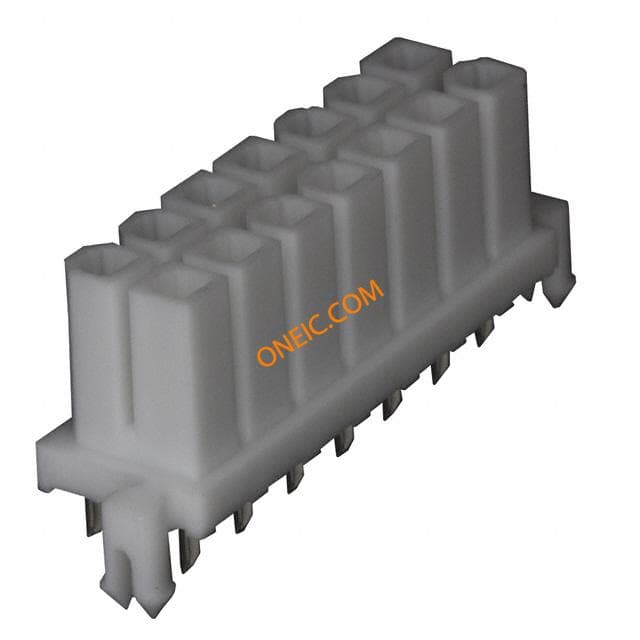

15-24-7143
