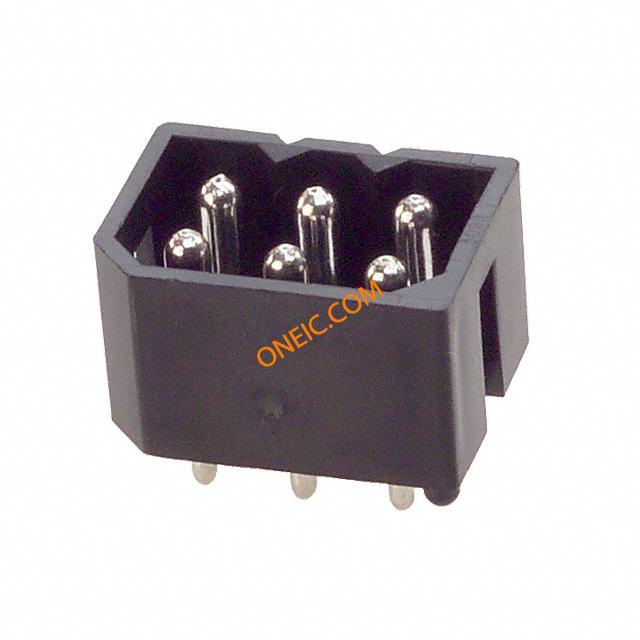

10-18-1061
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS .093 VERT TIN Pin & Socket Connectors 6 CIRCUIT HOUSING Conn Shrouded Header HDR 6 POS 5.03mm Solder ST Thru-Hole Bag |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0010181061 3099P6A |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-2 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 间距 | 0.198" (5.03mm) |
| 包装方式 | Bulk | 排间距 | 0.198" (5.03mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyester | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 位数 | 6 |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 系列 | 3099 | 产品特性 | Board Guide |
| 产品子类型 | Headers | 加载位置数 | All |
