10-11-2133

制造商	Molex, LLC

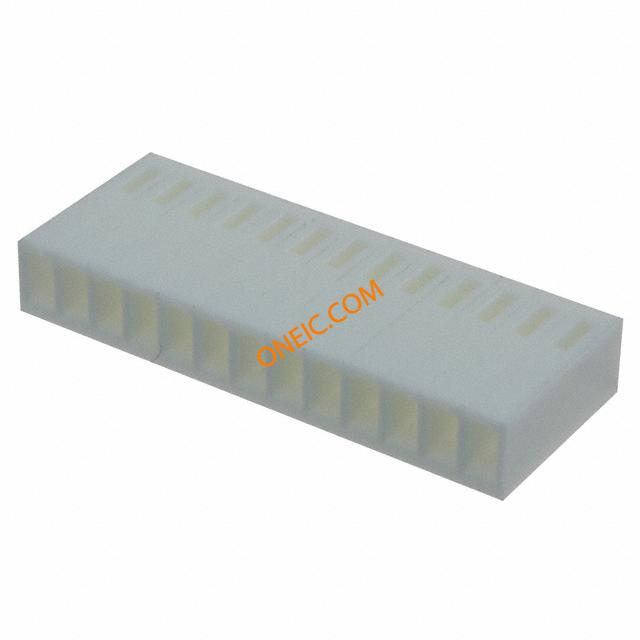

描述	CONN HOUSING 13POS .100 HI PRESS Headers & Wire Housings KK100 13P HOUSING CRIMP 2.54mm Pitch KK® Crimp Terminal Housing, High Pressure, 13 Circuits KK 100 Housing Crimp Ramp 13 Ckt KK100HousingCrimpRamp13Ckt
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0010112133 7880-13B
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1000

合规参数

RoHS

RoHS Compliant

电气参数

开关功能

Unlatched

机械参数

颜色	White	间距	0.100" (2.54mm)
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Locking Ramp	安装样式	Free Hanging
排数	1	壳体材料	Nylon
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	13	接触件端接	Crimp
位数	13

产品信息

备注	Contacts Not Provided	系列	7880
产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

10-01-2yyy, 10-11-2yyy

PDF 文档

0010112133_CRIMP_HOUSINGS.pdf
