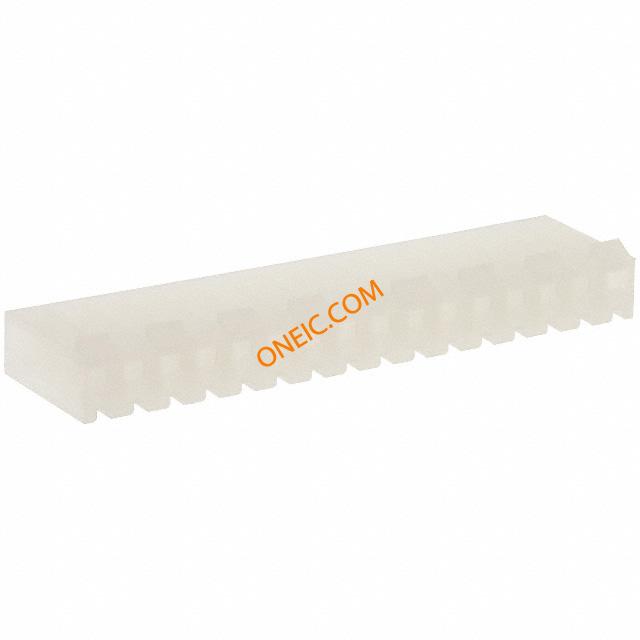

09-50-3161

制造商	Molex, LLC
描述	CONN RECEPT 16POS .156 W/RAMP 3.96mm,KK,housing,w/ramp,nylon,16way Conn Housing F 16 POS 3.96mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE 16POS, 3.96MM 156 KK TERM HSG W/RAMP NYLON 16CKT 156KKTERMHSGW/RAMPNYLON16CKT Molex KK 396 系列 3.96mm 节距 16 路直母电缆安装压接连接器外壳
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Compliant

海关税号

85369010

机械参数

颜色	Natural	深度	15.88mm
间距	0.156" (3.96mm)	宽度	6.4mm
长度	63.3mm	重量	0.005
包装方式	Bulk	触头类型	Non Gendered
基体材料	:PA Polyamide (Nylon)	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	1	壳体材料	Nylon
触点数	16	接触件端接	Crimp
位数	16

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	2139	CAD图纸	3D CAD Model
适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

09-50-3161
