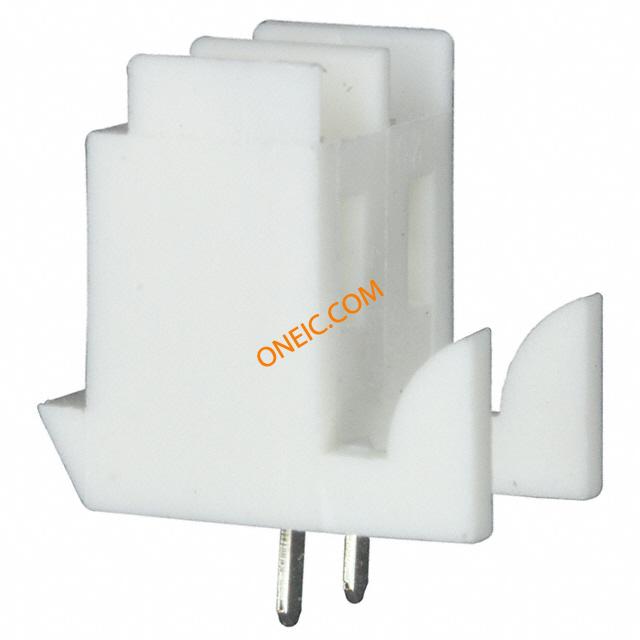

点击放大查看
09-48-4029
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 2POS .156 VERT PCB Headers & Wire Housings 2 POS RECEPT .156 BOTTOM PCB TIN Conn Socket Strip RCP 2 POS 3.96mm Solder ST Thru-Hole Tray |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0009484029 9484029 A-41815-0030 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 3157 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 颜色 | Natural | 间距 | 0.156" (3.96mm) |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Female Socket | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Bottom Entry | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 2 |
| 位数 | 2 | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 系列 | 41815 | 产品子类型 | Receptacles / Sockets - PCB |
| 加载位置数 | All | ||
