点击放大查看

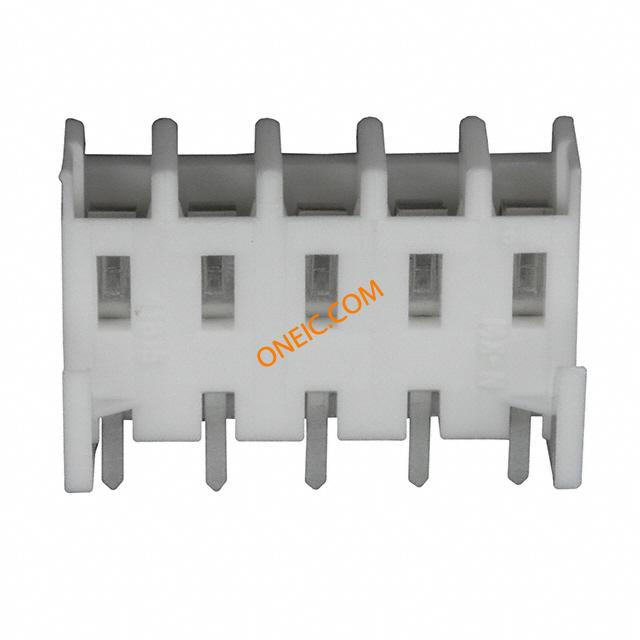

09-48-3054
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 5POS .156 VERT PCB Headers & Wire Housings 5 POS RECEPT .156 BOTTOM PCB GOLD Conn Socket Strip RCP 5 POS 3.96mm Solder ST Thru-Hole Tray |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0009483054 9483054 A-41815-0442 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1232 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 颜色 | Natural | 间距 | 0.156" (3.96mm) |
| 包装方式 | Tray | 端接方式 | Solder |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Bottom Entry |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 5 | 位数 | 5 |
| 接触镀层厚度 | 15µin (0.38µm) | 每排/每行位置数 | All |
产品信息
| 系列 | 41815 | 产品子类型 | Receptacles / Sockets - PCB |
| 输出配置 | Through Hole | 加载位置数 | All |
