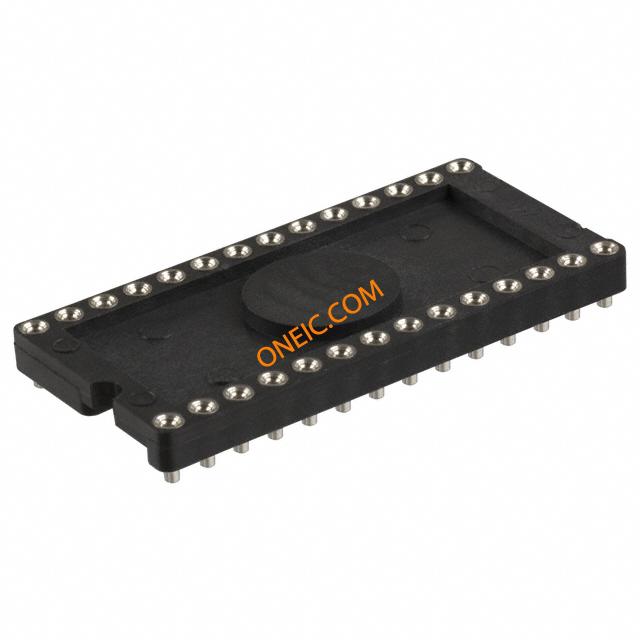

214-99-628-01-670800
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | Conn DIP Socket SKT 28 POS 2.54mm Solder ST SMD Tube IC SOCKET 28PIN CLOSED FRAME SMD IC & Component Sockets 28P SMD IC SOCKET |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 14 | 工厂包装数量 | 14 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | Not Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 3 A |
机械参数
| 深度 | 17.78 | 间距 | 0.100" (2.54mm) |
| 高度 | 4.21 | 底座类型 | Closed Frame |
| 包装方式 | Tube | 排间距 | 15.24 mm |
| 端接方式 | Solder | 安装类型 | Surface Mount |
| 接触镀层 | Tin-Lead Over Nickel | 安装样式 | SMD/SMT |
| 排数 | 2 | 封装形式 | DIP |
| 触头材料 | Beryllium Copper Alloy | 壳体材料 | Nylon |
| 总长度 | 35.56 | 端接样式 | Solder Pad |
| 触点数 | 28 | 绝缘材料 - 类型 | Nylon |
| 接触镀层厚度 | 200µin (5.08µm) | 位置或引脚数（网格） | 28 (2 x 14) |
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 产品特性 | Closed Frame | ||
环境参数
| 工作温度 | - 55 C to + 125 C | ||
