点击放大查看

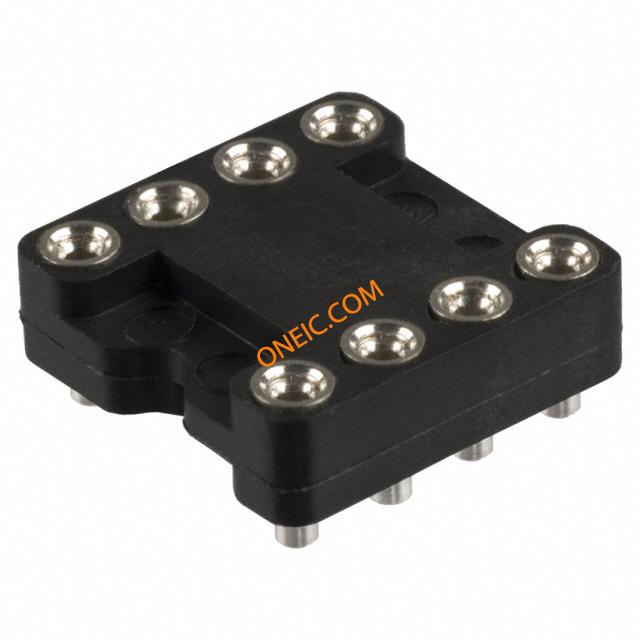

214-99-308-01-670800
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | Conn DIP Socket SKT 8 POS 2.54mm Solder ST SMD Tube IC SOCKET 8 PIN CLOSED FRAME SMD IC & Component Sockets 8P SMD IC SOCKET IC SOCKET, DIP, 2.54MM, 8POS |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 交货时间 | 20 Days |
| 子类别 | Connector Socket | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | Not Compliant |
| 海关税号 | 85366930 | 抗辐射加固 | No |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 3 A |

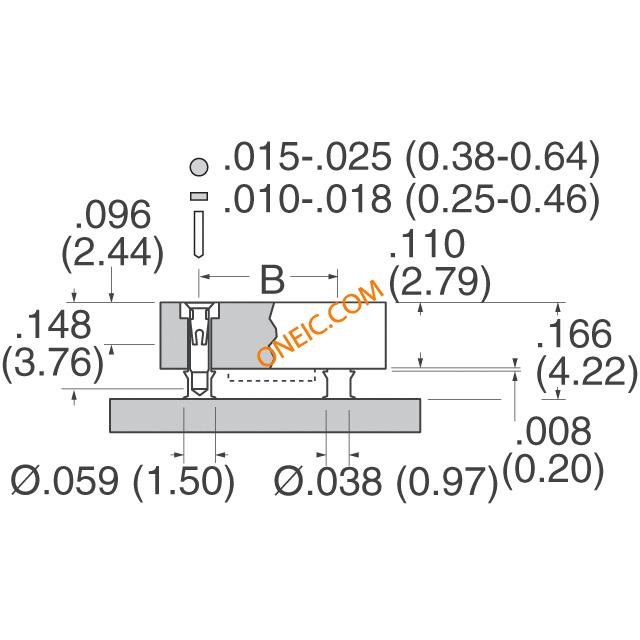

机械参数

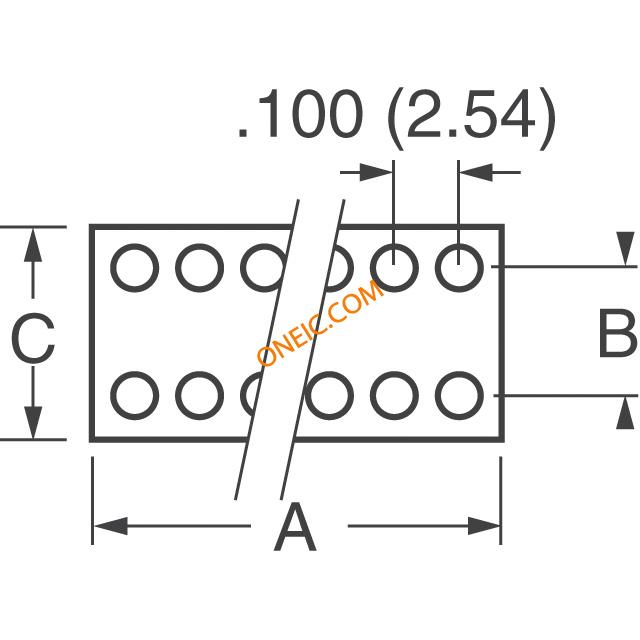

| 深度 | 10.16 mm | 间距 | 0.100" (2.54mm) |
| 高度 | 4.22 mm | 重量 | 0 |
| 底座类型 | Closed Frame | 包装方式 | Tube |
| 排间距 | 7.62 mm | 柱间距 | :7.62mm |
| 安装类型 | Surface Mount | 连接器类型 | :DIP Socket |
| 接触镀层 | Tin-Lead | 安装样式 | SMD/SMT |
| 排数 | 2 | 封装形式 | DIP |
| 触头材料 | Beryllium Copper | 壳体材料 | Nylon |
| 总长度 | 10.16 mm | 端接样式 | Solder Pad |
| 触点数 | 8 | 接触件端接 | :Surface Mount Vertical |
| 绝缘材料 - 类型 | Nylon 46 | 位数 | Not Required |
| 接触镀层厚度 | 200µin (5.08µm) | 位置或引脚数（网格） | 8 (2 x 4) |
产品信息
| 类型 | DIP, 0.3" (7.62mm) Row Spacing | 连接器性别 | SKT |
| 系列 | :- | 产品特性 | Closed Frame |
| 适用产品/相关产品 | 214-44-308-01-670800 | ||
环境参数
| 工作温度 | - 55 C to + 125 C | ||
