点击放大查看

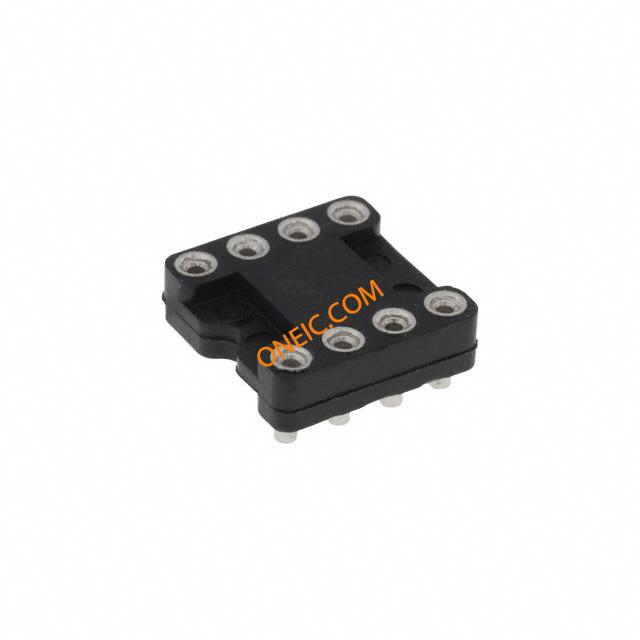

214-44-308-01-670800
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | Conn DIP Socket SKT 8 POS 2.54mm Solder ST SMD Tube IC SOCKET 8 PIN CLOSED FRAME SMD IC & Component Sockets 8 PIN Sn/Sn SMT CLOSED FRAME SOCKET, DIL, 8 WAY, 0.3MM |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366930 | ||
电气参数
| 接触电阻 | 10 | 最大额定电流 | 3 A |
机械参数
| 深度 | 10.16 | 间距 | 0.100" (2.54mm) |
| 高度 | 4.22 | 重量 | 0.001 |
| 底座类型 | Closed Frame | 包装方式 | Tube |
| 排间距 | 7.62 mm | 端接方式 | Solder |
| 柱间距 | :7.62mm | 安装类型 | Surface Mount |
| 连接器类型 | :DIP Socket | 接触镀层 | Tin Over Nickel |
| 安装样式 | SMD/SMT | 排数 | 2 |
| 封装形式 | DIP | 触头材料 | Beryllium Copper Alloy |
| 壳体材料 | Nylon 46 | 总长度 | 10.16 |
| 端接样式 | Solder Pad | 触点数 | 8 |
| 接触件端接 | :Surface Mount Vertical | 绝缘材料 - 类型 | Nylon 46 |
| 接触镀层厚度 | 200µin (5.08µm) | 位置或引脚数（网格） | 8 (2 x 4) |
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 系列 | :- | 产品特性 | Closed Frame |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
