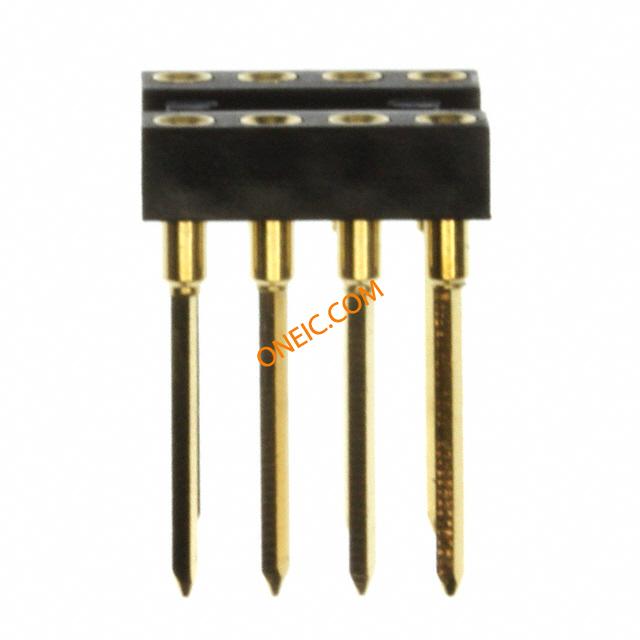

122-13-308-41-001000
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | Conn DIP Socket SKT 8 POS 2.54mm Wire Wrap ST Thru-Hole Tube SOCKET IC OPEN 2 LVL .300 8POS IC & Component Sockets 8P DIP SKT 2 LEVEL WRAPOST |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 3 |
| 绝缘电阻 | 10000 | 最小输入电压 | 150VDC |
机械参数
| 深度 | 10.1 | 间距 | 0.100" (2.54mm) |
| 高度 | 4.9 | 包装方式 | Tube |
| 排间距 | 7.62 | 端接方式 | Wire Wrap |
| 安装类型 | Through Hole | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Beryllium Copper | 壳体材料 | Polychlorinated Terphenyl |
| 总长度 | 10.1 | 端接样式 | Solder Pin |
| 触点数 | 8 | 绝缘材料 - 类型 | Polychlorinated Terphenyl |
| 接触镀层厚度 | 30µin (0.76µm) | 位置或引脚数（网格） | 8 (2 x 4) |
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 产品特性 | Open Frame | ||
