点击放大查看

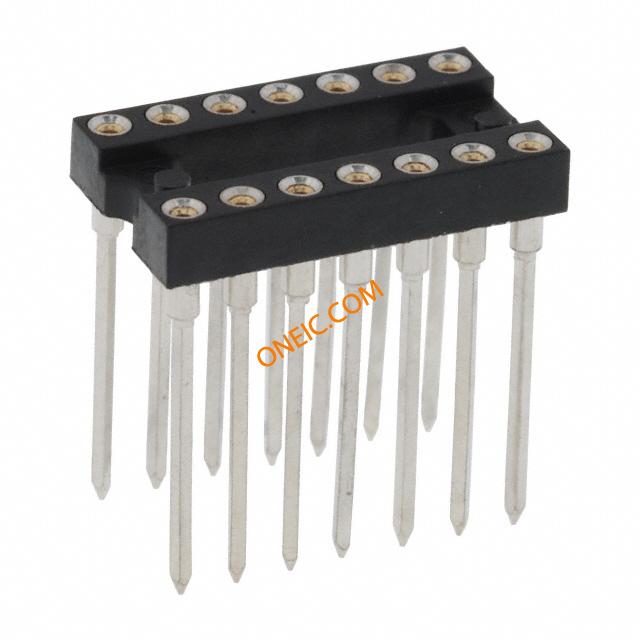

123-93-314-41-001000
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | 14 PIN W/W IC SOCKET GOLD .300 Socket; DIP;14Pins;3-Level;Open;Solderless Wrapost;0.3In.;Gold;SMD;0.51In.;3A IC & Component Sockets 14P TIN PIN GLD CONT DIP SOCKET, 14POS, THROUGH HOLE Socket,DIP;14Pins;3-Level;Open;SolderlessWrapost;0.3In.;Gold;SMD;0.51In.;3A |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 交货时间 | 20 Days |
| 子类别 | Connector Socket | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 28 | 工厂包装数量 | 28 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 1 kV | 最大额定电流 | 3 A |
机械参数
| 间距 | 0.100" (2.54mm) | 重量 | 0.002 |
| 底座类型 | Open Frame | 包装方式 | Tube |
| 排间距 | 7.62 mm | 柱间距 | :7.62mm |
| 安装类型 | Wire Wrap | 连接器类型 | :DIP Socket |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | DIP |
| 触头材料 | Beryllium Copper | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Wire Wrap | 触点数 | 14 |
| 接触件端接 | :Wire Wrap | 接触镀层厚度 | 30µin (0.76µm) |
| 位置或引脚数（网格） | 14 (2 x 7) | ||
产品信息
| 类型 | DIP, 0.3" (7.62mm) Row Spacing | 系列 | :123 |
| 产品特性 | Open Frame | 适用产品/相关产品 | 123-13-314-41-001000123-43-314-41-001000 |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
