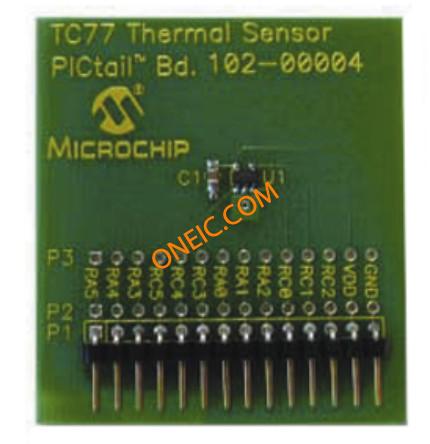

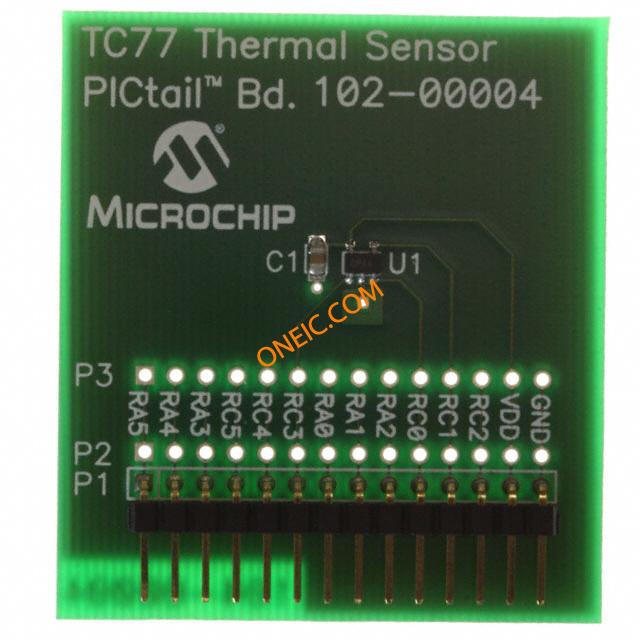

TC77DM-PICTL
| 制造商 | Microchip Technology Inc. |
| 描述 | TC77 Thermal Sensor Pictail DEMO Board Temperature Sensor Development Tools TC77 Thermal Sensor PICtail Demo BOARD DEMO PICTAIL TC77 TC77DM-PICTL, Development Kit TC77, THERMAL SENSOR, DEMO BOARD DEMOBOARD,TC77DM-PICTL Microchip PICtail 模拟开发套件 |
| 分类 |
商业参数
| 其他名称 | TC77DMPICTL | 产品类别 | Temperature Sensor Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | :Sensor | 接口 | Microwire, SPI, 3-Wire Serial |
| 灵敏度 | ±1°C | 传感器类型 | Temperature |
| 感应范围 | -55°C ~ 125°C | 供电电流 | 250 uA |
| 供电电压 | 2.7 V ~ 5.5 V | ||
机械参数
| 重量 | 0.18 | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 产品特性 | :Transmits Data via SPI Serial Bus, Standard 100-mill Header for Easy Interface, Small PCB Layout |
| 基本单元 | :77 | 技术 | Sensor & Transducer |
| 套件内容 | Demo Board for the TC77 Thermal Sensor PICtail, Documentation & User Guide | 制造商全称 | :PICtail |
| 产品子类型 | Demonstration Board | 卡标准 | Development Kit |
| 工具类型/特性 | TC77 Thermal Sensor | 使用的IC/零件 | TC77 |
| 支持MCU系列 | :PIC16Fxxx, TC77 | 适用产品/相关产品 | :TC77 |
