PIC24HJ64GP502-I/SP
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit PIC24 PIC RISC 64KB Flash 3.3V 28-Pin SPDIP Tube 16-bit Microcontrollers - MCU 16B MCU 28LD64KB DMA 40MIPS 16-bit MCU, 64KB Flash,CAN,DMA,40 MI IC MCU 16BIT 64KB FLASH 28SDIP PIC24HJ64GP502-I/SP, 16 bit Microcontroller PIC 40MIPS 64kb Flash, 8kb RAM, I2C SPI 28-Pin SPDIP MCU 16-bit PIC24H PIC RISC 64KB Flash 3.3V 28-Pin SPDIP Tube MCU, 16BIT, 64K FLASH, 40MIPS, 28SPDIP 16-BitMCU,28LD,64KBFlash,CAN,DMA,40MIPS,nanoWatt |
| 分类 |
商业参数
| 最小起订量 | 1600 | 单位包装 | 15 |
| 其他名称 | PIC24HJ64GP502ISP | 产品类别 | 16-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 15 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | 抗辐射加固 | No |
电气参数
| 输入端 | 21 | 转速 | 40 MHz |
| 定时器 | 5 x 16 bit | 存储器 | 64KBytes |
| RAM 大小 | 8 KB | 内核大小 | 16-Bit |
| 核心类型 | PIC | 频率 | 40 MHz |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 比较器数量 | 2 | 分辨率 | 16bit |
| 存储器容量 | 8 KB | 存储器类型 | :Flash |
| I/O 数量 | 21 | 电压范围 | 3-3.6V |
| 位数 | :16 bit | 额定电压 | 3 → 3.6 V |
| 看门狗定时器 | 1 | 时钟频率 | :80MHz |
| 数据转换器 | A/D 10x10b/12b | FPGA 核心单元数 | :40 |
| 最大频率 | 40MIPS | DAC数量 | 4 |
| 振荡器类型 | Internal | 供电电压 | 3.3 V |
| 分辨率（位） | 10 bit, 12 bit | 通道数量 | 10, 10 |
| 模拟输入/输出 | 10-Channel,12-Bit | 非易失性存储器 | 0Bytes |
| 程序存储器大小 | 64 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 10 | 最小供电电压 | 2.7/3 V |
| 频率（中心/带宽） | 16bit | 每元件位数 | 10 bit, 12 bit |
| 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V | ||
机械参数
| 宽度 | 0.295in | 高度 | 0.15in |
| 长度 | 1.4in | 重量 | 0.001333 |
| 包装方式 | Tube | 端接方式 | :Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :28 | 封装形式 | 28SPDIP |
| 冷却的封装 | SPDIP | 材料表面处理 | :- |
| 尺寸/外形 | 1.4 x 0.295 x 0.15in | 位数 | 28 |
| 供应商器件封装 | 28-SPDIP | 核心数/总线宽度 | 16 Bit |
| 脉冲宽度失真（最大） | 4(16 bit) | ||
产品信息
| USB | 0 | 系列 | PIC24H |
| 产品特性 | CAN Controller | 闪存大小 | :64KB |
| 片内RAM（通道数×位宽） | 10-chx10-bit|10-chx12-bit | 外设 | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| 架构 | RISC | 连接性 | CAN, I²C, IrDA, LIN, PMP, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 定时器数量 | 5 | 控制器系列 | :PIC24HJxxGPxxx |
| 射频系列/标准 | PIC24 | A/D转换器数量 | :10 |
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
文档与媒体
相关型号
MCP2551-I/SN
microchip
CAN 1Mbps Sleep/Standby 5V Industrial 8-Pin SOIC N Tube Network Controller & Processor ICs Hi Spd CAN Transceiv CAN 1T/1R 4V 1Mb/s SO8 SMD IC TRANSCEIVER CAN HI-SPD 8-SOIC CAN transceiver, 1Mbps IC, CAN TRANSCEIVER, HI SPEED, SMD IC, CAN TXRX, 1MBPS, 1/1, 5.5V, SOIC-8 HIGHSPEEDCANTRANSCEIVER Integrated circuit: transceiver CAN; Channels:1; 1Mbps; SO8 Microchip 1MBps CAN 收发器, 支持ISO 11898标准, 睡眠，待机断电, 8针 SOIC封装 CAN Interface IC Hi Spd CAN Transceiv
AC164337
microchip
MPLAB PM3 SOCKET MODULE FOR 40 Sockets & Adapters PM3 40L SOCKET MODULE MPLAB PM3 Socket Module for 40L DIP MODULE SOCKET FOR PM3 40DIP
DV244005
microchip
MPLAB Real ICE In Circuit Emulator Probe Kit Emulators / Simulators In Circuit Emulator MPLAB REAL ICE REAL ICE with Base Probe KIT PROBE MPLAB REAL ICE DV244005, Development Kit, 32 bit, PIC PROBE KIT, MPLAB REAL ICE MPLABREALIn-CircuitEmulator(ICE)withIDE Programmer: microcontrollers; USB; No.of diodes:2 MPLAB REAL ICE, in-circuit emulator PC hosted mode, DV244005, Microchip Microchip 处理器和微控制器开发套件
MA240016
microchip

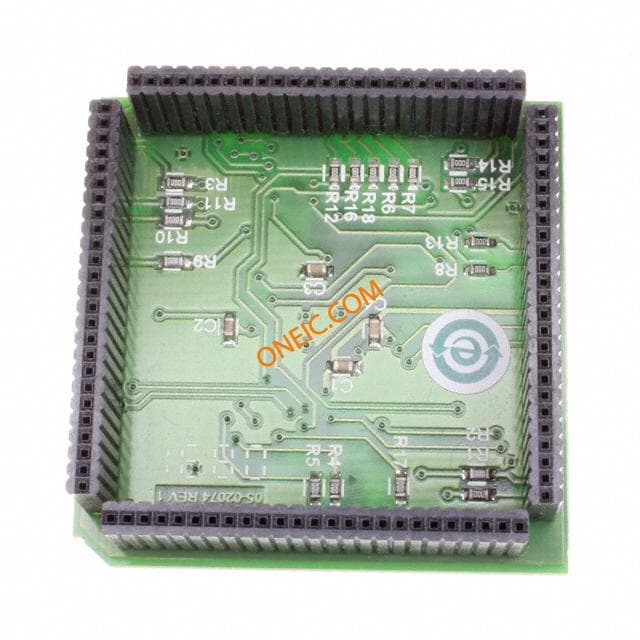

PIC24HJ128GP504 100 PIN PIM Daughter Cards & OEM Boards PIC24HJ128GP504 100PIN Plug-In Mod. PIC24HJ128GP504 100 PIN Plug In Modu MODULE PLUG-IN 24HJ128GP504 PLUG IN MODULE, PIC24HJ128GP504, FOR EXPLORER 16 PIM, 100PIN, FOR PIC24HJ128GP504
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件
AC164127-5
microchip
Microcontrollers 16 Bit Picmcus And DSPICDSCS Daughter Cards & OEM Boards Graphics LCD Contlr SSD1926 Board Graphic PICtail Plus SSD1926 BOARD GRAPH LCD CNTLR PICTAIL AC164127-5, Module, LCD, PIC, Graphics LCD Controller PICtail Plus SSD1926 Board ADD-ON BRD, GRAPHICS CTLR, EXP16 + PIC32 LCDCONTROLLERPICTAIL Board with LCD controller; Interface: parallel 18-bit RGB Graphics LCD PICtail Plus SSD1926 Board -, AC164127-5, Microchip Microchip LCD 微控制器开发套件
DM240021
microchip
MPLAB Starter Kit For Pic24H Mcus,Includes Integrated Debugger/Programmer Development Boards & Kits - PIC / DSPIC MPLAB STARTER KIT FOR PIC24H KIT STARTER MPLAB FOR PIC24H DM240021, Development Kit, 16 bit, PIC PIC24H, DEBUGGER, MPLAB STARTER KIT MPLABStarterKitforPIC24H-DevelopmentKit Development kit: Microchip; PIC24HJ128GP504; OLED 128x64
MA240016-2
microchip

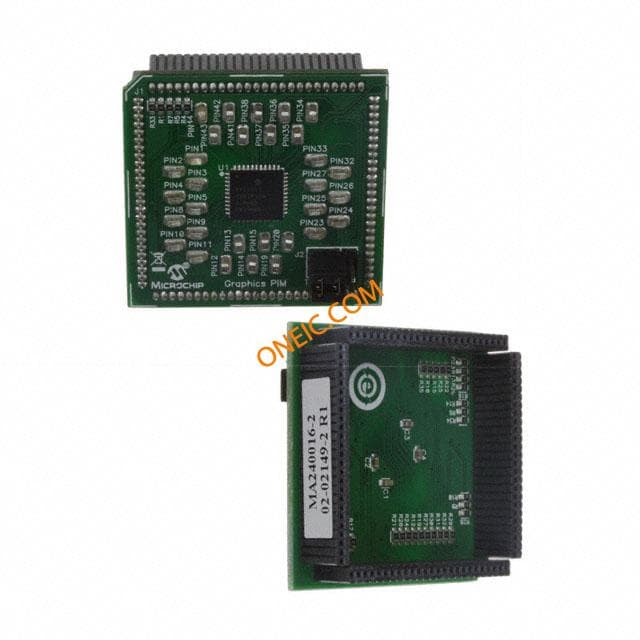

PIC24HJ128GP504 Graphics Plug-In Module Daughter Cards & OEM Boards PIC24HJ128GP504 Graphics Plug-In Mod PIC24HJ128GP504 Graphics PIM DAUGHTER BOARD PIC24HJ MA240016-2, Module, 16 bit, PIC, Graphics Plug In Module for the PIC24HJ128GP504 MCU PIM, GRAPHIC, FOR EXPLORER 16, PICTAIL PLUS PIM, GFX, FOR PIC24HJ128GP504 MA240016-2
