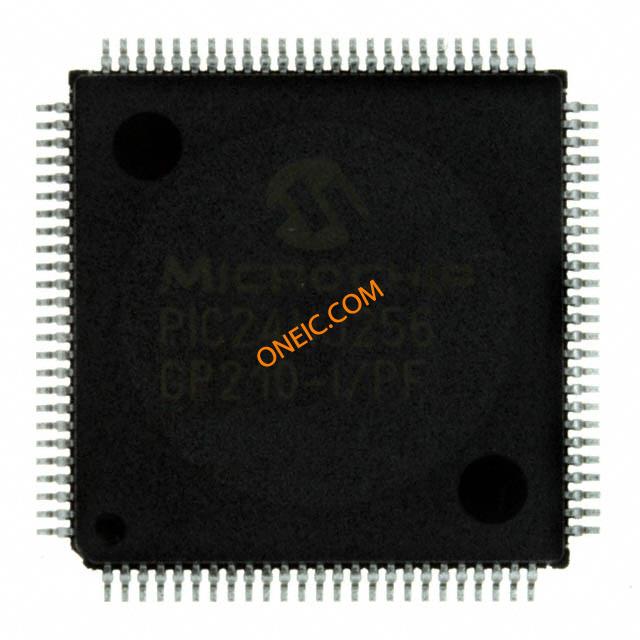

PIC24HJ256GP210-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit PIC24 PIC RISC 256KB Flash 3.3V 100-Pin TQFP Tray 16 Bit MCU 40MIPS 256KB FLASH IC MCU 16BIT 256KB FLASH 100TQFP PIC24HJ256GP210-I/PT, 16 bit Microcontroller PIC 40MIPS 256kb Flash, 16kb RAM, I2C SPI 100-Pin TQFP 16-bit Microcontrollers - MCU 40MIPS 256KB 16BIT MCU 256K FLASH 40MIPS, SMD MCU,16-Bit,256KBFlash,16KBRAM,85I/O,TQFP-100 Microchip PIC24HJ 系列 16 bit PIC MCU, 40MIPS, 256 kB ROM 闪存, 16 kB RAM, 100针 TQFP封装 |
| 分类 |
商业参数
| 最小起订量 | 1000 | 单位包装 | 119 |
| 其他名称 | PIC24HJ256GP210IPT | 产品类别 | 16-bit Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 119 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :24HJ256 |
电气参数
| 输入端 | 85 | 转速 | 40 MHz |
| 定时器 | 9 x 16 bit | 存储器 | 256KBytes |
| RAM 大小 | 16 KB | 内核大小 | 16-Bit |
| 核心类型 | PIC | 接口 | I2C/SPI/UART |
| 时钟速率 | 40 MHz | 比较器数量 | 0 |
| 分辨率 | 16bit | 存储器容量 | 16 KB |
| 存储器类型 | :SRAM | I/O 数量 | 85 |
| 电压范围 | 3-3.6V | 位数 | :16 |
| 额定电压 | 3 → 3.6 V | 看门狗定时器 | 1 |
| 时钟频率 | :80MHz | 数据转换器 | A/D 32x10b, 32x12b |
| 最大频率 | 40MIPS | DAC数量 | 8 |
| 振荡器类型 | Internal | 供电电压 | 3.3 V |
| 分辨率（位） | 12bit | 通道数量 | 0 |
| 模拟输入/输出 | 32-Channel,12-Bit | 非易失性存储器 | 0Bytes |
| 程序存储器大小 | 256 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 32 | 频率（中心/带宽） | 16bit |
| 每元件位数 | 12 bit | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 宽度 | 12mm | 高度 | 1.05mm |
| 长度 | 12mm | 重量 | 0.02 |
| 包装方式 | Tray | 端接方式 | :SMD |
| 引脚间距 | :0.5mm | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :100 |
| 封装形式 | 100TQFP | 冷却的封装 | TQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 尺寸/外形 | 12 x 12 x 1.05mm |
| 位数 | 100 | 供应商器件封装 | 100-TQFP (12x12) |
| 核心数/总线宽度 | 16 Bit | 脉冲宽度失真（最大） | 8(16 bit) |
产品信息
| USB | 0 | 系列 | PIC24H |
| 闪存大小 | :256KB | 片内RAM（通道数×位宽） | 32-chx12-bit |
| 外设 | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, IrDA, LIN, SPI, UART/USART | 核心处理器 | PIC |
| 定时器数量 | 13 | 控制器系列 | :PIC24HJxxxGPxxx |
| 射频系列/标准 | PIC24 | 微控制器特性 | :Self-Reprogrammable under Software Control, On-Chip LDO Regulator, Operating Voltage Range of 2.0V to 3.6V |
| A/D转换器数量 | :32 | 输入数量及类型 | 85 |
环境参数
| 温度范围 | :Industrial | 工作温度 | -40 to 85 °C |
