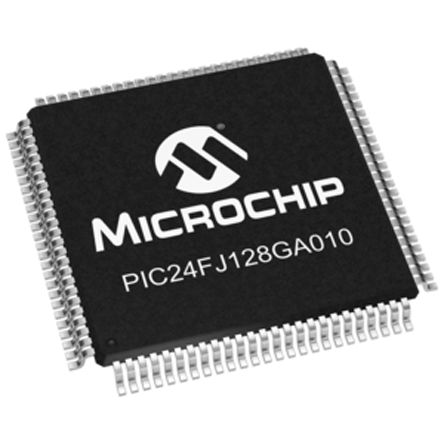

PIC24FJ128GA010-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit PIC24 PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray 16-bit Microcontrollers - MCU 128KB 84 I/O 16 bit MCU TQFP100 IC MCU 16BIT 128KB FLASH 100TQFP 16BIT MCU 128K FLASH 8K RAM, SMD 100-Pin,128KBFlash,8KBRAM,84I/O Microchip PIC24FJ 系列 16 bit PIC MCU, 32MHz, 128 kB ROM 闪存, 8 kB RAM, 100针 TQFP封装 PIC24FJ 128K TQFP100 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 119 |
| 其他名称 | PIC24FJ128GA010IPT | 产品类别 | 16-bit Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 119 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :24FJ128 |
| 无铅定义 | RoHS-conform | ||
电气参数
| 输入端 | 85 | 转速 | 16 MHz |
| 定时器 | 5-16-bit | 存储器 | 128KBytes |
| 容量（如电池容量、线径容量等） | 128Kbytes | 以太网 | 0 |
| RAM 大小 | 8 KB | 内核大小 | 16-Bit |
| 核心类型 | PIC | 接口 | I2C/SPI/UART |
| 时钟速率 | 16 MHz | 比较器数量 | 2 |
| EEPROM容量 | 0Byte | 存储器容量 | 8 KB |
| 存储器类型 | FLASH | 显示类型 | 0 |
| I/O 数量 | 54 | 电压范围 | 2-3.6V |
| 位数 | :16 | 额定电压 | 2-3.6V |
| 时钟频率 | :32MHz | 数据转换器 | A/D 16x10b |
| 最大频率 | 32MHz | DAC数量 | 5 |
| 振荡器类型 | Internal | 供电电压 | 2.5|3.3 V |
| 数字I/O线数 | 85pins | 分辨率（位） | 10Bit |
| 通道数量 | 16 | 模拟输入/输出 | 16-Channel,10-Bit |
| 非易失性存储器 | 0Bytes | 程序存储器大小 | 128 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 16channels |
| 最小输入电压 | 3.6V | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 2 V ~ 3.6 V | ||
机械参数
| 重量 | 0.02 | 包装方式 | Tray |
| 端接方式 | :SMD | 引脚间距 | :0.5mm |
| 安装样式 | SMD/SMT | 引脚数 | :100 |
| 封装形式 | 100TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 位数 | :24FJ128GA010 | 供应商器件封装 | 100-TQFP (12x12) |
| 核心数/总线宽度 | 16 Bit | ||
产品信息
| USB | 0 | 系列 | PIC24F |
| 匹配码 | PIC24FJ128GA010-I/PT | CAN编号 | 0 |
| 闪存大小 | :128KB | SPI编号 | 2 |
| 片内RAM（通道数×位宽） | 16-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 连接性 | I²C, PMP, SPI, UART/USART | 核心处理器 | PIC |
| 定时器数量 | 5 | 控制器系列 | :PIC24FJxxxGAxxx |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC24 |
| 微控制器特性 | :Self-Reprogrammable under Software Control, On-Chip LDO Regulator, Operating Voltage Range of 2.0V to 3.6V | A/D转换器数量 | :16 |
| 输入数量及类型 | 85 | ||
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | +85°C |
