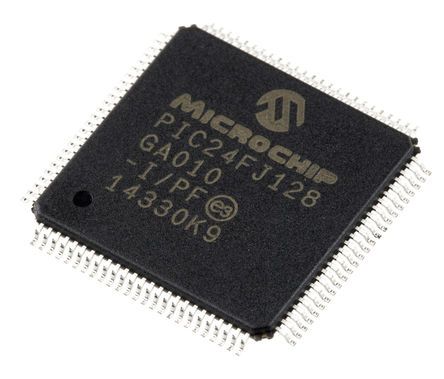

PIC24FJ128GA010-I/PF
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit PIC24 PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray 16-bit Microcontrollers - MCU 16 Bit 128KB Flash 8Kb RAM 53 I/O MCU 16-bit PIC24F PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray 128KB Flash, 8 Kb RAM, 84 I/O IC MCU 16BIT 128KB FLASH 100TQFP PIC24FJ128GA010-I/PF, 16 bit Microcontroller PIC 32MHz 128kb Flash, 8kb RAM, I2C SPI 100-Pin TQFP MCU 16-Bit PIC24 RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray 16BIT MCU 128K FLASH 8K RAM, SMD 100-Pin,128KBFlash,8KBRAM,84I/O PIC microcontroller; SRAM:8192B; 32MHz; TQFP100; 2÷3.6V Microchip PIC24FJ 系列 16 bit PIC MCU, 32MHz, 128 kB ROM 闪存, 8 kB RAM, 100针 TQFP封装 |
| 分类 |
商业参数
| 最小起订量 | 238 | 单位包装 | 90 |
| 其他名称 | PIC24FJ128GA010IPF | 产品类别 | 16-bit Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 90 |
| 标准封装名称 | QFP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :24FJ128 | 认证机构 | No |
电气参数
| 输入端 | 85 | 转速 | 16 MHz |
| 定时器 | 5 x 16 bit | 存储器 | 128KBytes |
| RAM 大小 | 8 KB | 内核大小 | 16-Bit |
| 核心类型 | PIC | 接口 | I2C/SPI/UART |
| 时钟速率 | 32 MHz | 比较器数量 | 2 |
| 分辨率 | 10bit | 存储器容量 | 8 KB |
| 存储器类型 | :SRAM | I/O 数量 | 54 |
| 电压范围 | 2-3.6V | 位数 | 10 |
| 额定电压 | 2 → 3.6 V | 时钟频率 | :32MHz |
| 数据转换器 | A/D 16x10b | 最大频率 | 32MHz |
| DAC数量 | 5 | 振荡器类型 | Internal |
| 串行协议 | 2 | 供电电压 | 2.5|3.3 V |
| 分辨率（位） | 10bit | 通道数量 | 16 |
| 模拟输入/输出 | 16-Channel,10-Bit | 非易失性存储器 | 0Bytes |
| 程序存储器大小 | 128 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 16 | 最小供电电压 | 2...3.6V |
| 频率（中心/带宽） | 16bit | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 2 V ~ 3.6 V | ||
机械参数
| 宽度 | 14mm | 高度 | 1.05mm |
| 长度 | 14mm | 重量 | 0.02 |
| 包装方式 | Tray | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 引脚间距 | :0.65mm |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :100 | 封装形式 | 100TQFP |
| 冷却的封装 | TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 总长度 | 14 | 包装数量 | TQFP |
| 尺寸/外形 | 14 x 14 x 1.05mm | 位数 | 100 |
| 外壳尺寸-插件 | 1 | 供应商器件封装 | 100-TQFP (14x14) |
| 核心数/总线宽度 | 16 Bit | 脉冲宽度失真（最大） | 5(10 bit) (Compare/PWM) |
产品信息
| SPI | 2 | SPG | 270 |
| USB | 0 | 类型 | PIC microcontroller |
| 系列 | PIC24F | 产品特性 | PMP |
| 协议 | 2 | 闪存大小 | :128KB |
| 片内RAM（通道数×位宽） | 16-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, PMP, SPI, UART/USART |
| 核心处理器 | PIC | 内置振荡器 | 32kHz, 8MHz |
| 单元数量 | 1 | 定时器数量 | 5 |
| 控制器系列 | :PIC24FJxxxGAxxx | 射频系列/标准 | PIC24 |
| DigiKey可编程 | Yes | 宏单元数量 | 0 |
| 印刷电路板数量 | 100 | 微控制器特性 | :Self-Reprogrammable under Software Control, On-Chip LDO Regulator, Operating Voltage Range of 2.0V to 3.6V |
| A/D转换器数量 | :16 | ||
环境参数
| 温度范围 | :Industrial | 工作温度 | -40 to 85 °C |
文档与媒体
相关型号
AC164323
microchip
100L TQFP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters Socket Module 100L TQFP Socket Module for MPLAB PM MODULE SKT FOR 100TQFP UNIVERSAL SOCKET MODULE
DV164033
microchip
Evaluation Board For Application Development Using Microchipys PIC24F, 16Bit Microcontrollers Development Boards & Kits - PIC / DSPIC ICD 2 w/ Explorer 16 Development Board Explorer 16 Starter Kit KIT START EXPLORER 16 MPLAB ICD2 EXPLORER 16 KIT; MPLAB ICD 2 WITH EXPORER 16 PIC24, DSPIC33, EXPLORER 16 KIT EXPLORER16KIT,MPLABICD2WITHEXPORER16 Development kit: Microchip
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DM240011
microchip
MPLAB Starter Kit For PIC24F Development Boards & Kits - PIC / DSPIC MPLAB Starter Kit for PIC24F MCU MPLAB Starter Kit for PIC24F KIT STARTER MPLAB FOR PIC24F MCU DM240011, Development Kit, 16 bit, PIC PIC24F, OLED, MPLAB STARTER KIT MPLABSTARTERKITFORPIC24FMCU,PICDEMO Development kit: Microchip; PIC24FJ256GB110; OLED 128x64 MPLAB Starter Kit for PIC24F PC hosted mode, DM240011, Microchip
MA240011
microchip
PIC24F 100P to 100P TQFP Plug-In Module Daughter Cards & OEM Boards PIC24 100P to 100P Plug-In Module PIC24 100P to 100P QFP Plug-In Modul MODULE PIC24 100P TO 100QFP MA240011, Module, 16 bit, PIC, Plug-in Module for the PIC24FJ128GA010 MCU PIM, 100P TO 100P QFP, PIC24 Expansion board; PIC24FJ128GA010; In the set: prototype board
AC244022
microchip
Processor Extension Pak For PIC18F1XK50 Sockets & Adapters Procs Extnsn Pak for PIC24FJ128GA010-ICE Processor Extension Pak for PIC24FJ1 PROC EXTENS PAK 24FJ128GA010-ICE EXTENSION PAK, FOR PIC24FJ128GA010
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件
MA160011
microchip
PICDEM LCD PLUG-IN MODULES (PIC16F91X) Daughter Cards & OEM Boards PICDEM LCD PLUG-IN Modules (PIC16F91X) DAUGHTER BOARD PICDEM LCD 16F91X
DKSB1011A
Digi-Key Evaluation Boards

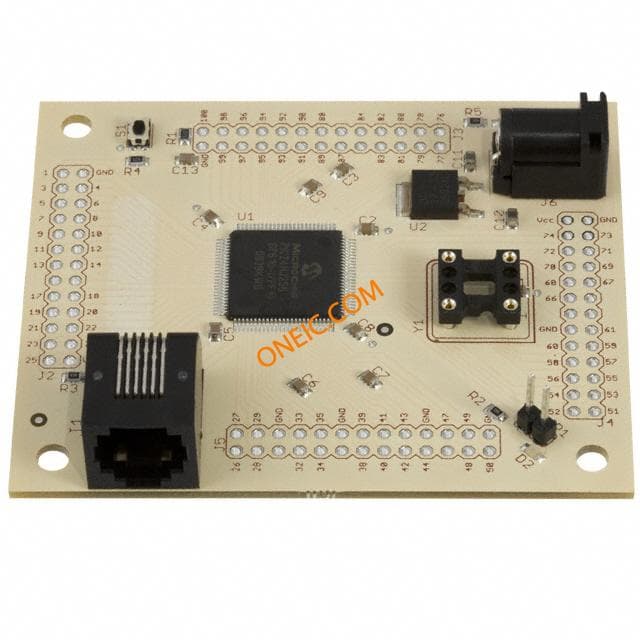

PIC24 BREAKOUT BOARD
