PIC18F46K20-I/PT

点击放大查看

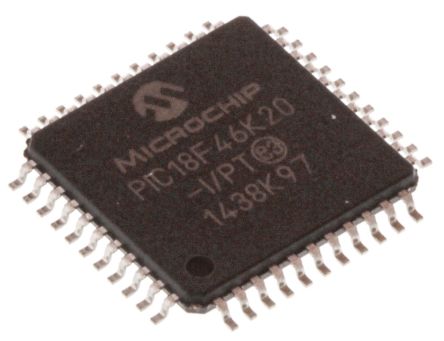

PIC18F46K20-I/PT

制造商
Microchip Technology Inc.
描述MCU 8-bit PIC18 PIC RISC 64KB Flash 2.5V/3.3V 44-Pin TQFP Tray 8 bit MCU TQFP44 IC MCU 8BIT 64KB FLASH 44TQFP PIC18F46K20-I/PT, 8 bit Microcontroller PIC 64MHz 64kb Flash, 3936B RAM, I2C SPI 44-Pin TQFP 8-bit Microcontrollers - MCU 64KB Flash 3968B RAM 36 I/O 8B IC, MCU 8BIT 64K FLASH, SMD, TQFP44 44-Pin,64KB,Flash,3968bytes-RAM,36I/O,8-BitnanoWatt Microcontroller 8 Bit TQFP-44, PIC18F46K20-I/PT, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 64MHz, 64 kB、1024 B ROM 闪存, 3936 B RAM, 44针 TQFP封装 PIC18F 64K TQFP44 85°C
分类
集成电路嵌入式微控制器应用处理器

商业参数

最小起订量1单位包装160
其他名称PIC18F46K20IPT产品类别8-bit Microcontrollers - MCU
标准包装数量Trays工厂包装数量160

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
海关税号85411000抗辐射加固No
无铅定义RoHS-conform

电气参数

输入端36转速64 MHz
定时器1 x 8 bit, 3 x 16 bit存储器64KBytes
以太网0RAM 大小3936 byte
内核大小8-Bit核心类型PIC
频率64 MHz接口I2C/SPI/USART
时钟速率64 MHz比较器数量2
EEPROM容量1024Byte存储器容量64KByte
存储器类型FLASH显示类型0
I/O 数量36电压范围1.8-3.6V
位数8额定电压1.8 → 3.6 V
看门狗定时器1时钟频率:64MHz
数据转换器A/D 14x10b最大频率64MHz
DAC数量0振荡器类型Internal
供电电压2.5|3.3 V数字I/O线数36pins
分辨率（位）10Bit通道数量1
模拟输入/输出2非易失性存储器1KBytes
程序存储器大小64 KB程序存储器类型Flash
ADC/DAC 数量13channels最小输入电压3.6V
最小供电电压1.8 V频率（中心/带宽）16 bit, 8 bit
最大功耗1000 mW每元件位数10 bit
供电电压 (Vcc/Vdd)1.8 V ~ 3.6 V

机械参数

宽度10mm高度1.05mm
长度10mm重量0.002188
包装方式TRAY端接方式:SMD
安装类型Surface Mount安装样式SMD/SMT
引脚数:44封装形式44TQFP
冷却的封装TQFP材料表面处理:MSL 3 - 168 hours
尺寸/外形10 x 10 x 1.05mm位数44
供应商器件封装44-TQFP (10x10)核心数/总线宽度8 Bit
脉冲宽度失真（最大）1(CCP), 1(ECCP)

产品信息

USB0系列PIC18
基本单元:PIC18F匹配码PIC18F46K20-I/PT
CAN编号0闪存大小:64KB
SPI编号1片内RAM（通道数×位宽）14-chx10-bit
外设Brown-out Detect/Reset, HLVD, POR, PWM, WDT架构RISC
连接性I²C, SPI, UART/USART可编程性Yes
核心处理器PIC定时器数量4
控制器系列:PIC18FxxKxx标准交期14 weeks
射频系列/标准PIC18A/D转换器数量:14

环境参数

测试温度-40°C工作温度-40 to 85 °C
结工作温度85C

文档与媒体

PIC18F26K20,46K20 28/May/2013
Qualification Copper Wire 10/Feb/2014
Qualification Lead-Frame 03/Jun/2014
Qualification Copper Wire 21/Apr/2014
41303G.pdf
PIC18FxxK20 Datasheet
PIC18F26K20, PIC18F46K20 Rev.A4 to A5 Errata
PIC18F(26, 46)K20 Errata, Datasheet Clarification
PIC18F(2,4)xK20 Programming Spec
41303D.pdf
