PIC18F2220-I/SP

点击放大查看

PIC18F2220-I/SP

制造商
Microchip Technology Inc.
描述MCU 8-bit PIC18 PIC RISC 4KB Flash 5V 28-Pin SPDIP Tube 4 KB Flash, 512 RAM, 25 I/O IC MCU 8BIT 4KB FLASH 28SDIP PIC18F2220-I/SP, 8 bit Microcontroller PIC 40MHz 4096 Flash, 512B RAM, I2C SPI 28-Pin SPDIP 8-bit Microcontrollers - MCU 4KB 512 RAM 25 I/O IC, 8BIT FLASH MCU, 18F2220, SDIL28 MICROPIC18F2220-I/SP PIC microcontroller; EEPROM:256B; SRAM:512B; 40MHz; DIP28; 2÷5.5V Microcontroller 8 Bit DIL-28, PIC18F2220-I/SP, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 256 B，4096 B ROM 闪存, 512 B RAM, 28针 SPDIP封装
分类
集成电路嵌入式微控制器无线MCU
对参数有疑问？问 AI 助手

商业参数

最小起订量1600单位包装15
其他名称PIC18F2220ISP产品类别8-bit Microcontrollers - MCU
标准包装数量Rail / Tube工厂包装数量15

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
海关税号85423190零件状态:18F2220

电气参数

转速40 MHz定时器1 x 8 bit, 1 x 8/16 bit, 2 x 16 bit
存储器4kBRAM 大小512 byte
内核大小8-Bit核心类型PIC
接口I2C/SPI/USART时钟速率40 MHz
分辨率10bitEEPROM容量256 x 8
存储器容量512 B存储器类型:Flash
I/O 数量25位数:8
额定电压4.2 → 5.5 V看门狗定时器1
时钟频率:40MHz数据转换器A/D 10x10b
FPGA 核心单元数:10最大频率40MHz
DAC数量2振荡器类型Internal
供电电压5 V分辨率（位）10bit
通道数量0模拟输入/输出2
程序存储器大小4 KB程序存储器类型Flash
ADC/DAC 数量108位定时器数量1
最小供电电压2...5.5V频率（中心/带宽）16 bit, 8 bit
最大功耗1000 mW每元件位数10 bit
供电电压 (Vcc/Vdd)4.2 V ~ 5.5 V

机械参数

宽度0.295in高度0.15in
长度1.4in重量0.000001
包装方式Tube安装类型Through Hole
安装样式Through Hole引脚数:28
封装形式28SPDIP冷却的封装SPDIP
材料表面处理:-包装数量5
尺寸/外形1.4 x 0.295 x 0.15in位数28
供应商器件封装28-SPDIP核心数/总线宽度8 Bit
脉冲宽度失真（最大）2(10 bit) (CCP)

产品信息

SPG5USB0
类型PIC microcontroller系列PIC18
闪存大小:4KB片内RAM（通道数×位宽）10-chx10-bit
外设Brown-out Detect/Reset, LVD, POR, PWM, WDT架构RISC
连接性I²C, SPI, UART/USART核心处理器PIC
内置振荡器32kHz, 8MHz单元数量1
定时器数量5控制器系列:PIC18F2xxx
射频系列/标准PIC18微控制器特性:ADC, BOD, ICSP, SPI/I2C, TIMERS, PWM, USART
A/D转换器数量:10

环境参数

温度范围:Industrial工作温度-40 to 85 °C

文档与媒体

在线文档
Palladium Coated Copper Wire 18/Sep/2013
在线文档
Palladium Coated Copper Wire 23/Aug/2013
在线文档
Qualification SPDIP-28 Package 26/Dec/2013
在线文档
Qualification SPDIP-28L, PDIP-8/16L 18/Sep/2013
在线文档
Qualification Revision 23/Aug/2013
在线文档
Qualification Copper Wire 26/Mar/2014
在线文档
Qualification Revision 06/Feb/2014
PDF 文档
39599g.pdf
在线文档
PIC18F2x20, 4x20 Data Sheet
在线文档
Timer1 Errata
在线文档
PIC18F2x20, 4x20 Rev B3 Errata
在线文档
PIC18F2x20, 4x20 Rev. C1 Errata
在线文档
PIC18F2x20, 4x20 Rev B2 Errata
在线文档
PIC18F2x20, 4x20 Rev C2 Errata
在线文档
PIC18F2x20, 4x20 Data Sheet Errata
PDF 文档
39599c.pdf

相关型号

SW500008

SW500008

microchip

Hi-Tech C Compiler For Pic18 MCUs Development Software PICC-18STD Compiler HI-TECH C Compiler for PIC18 MCUs - PICC-18 STD HI-TECH C COMPILER, FOR PIC18, STD Compilers,HI-TECHCCompilerforPIC18MCUs-Standard

详情
DV164131

DV164131

microchip

PICKIT 3 InCircuit Debugger/Programmer Uses InCircuit Debugging Logic Incorporated In-Circuit Debuggers PICkit 3 Debug Exprs PICkit 3 Debug Express KIT STARTER PICKIT 3 DV164131, Development Kit, 16 bit, PIC DEBUG EXPRESS, PICKIT 3, PIC, DSPIC PICKit3Debugger/Programmer Programmer: microcontrollers; USB; ICSP, USB B mini PICkit 3 Debug Express PC hosted mode, DV164131, Microchip Microchip 16 位 MCU 微控制器开发套件

¥534.5400
详情
DM163022

DM163022

microchip

Demonstration Board To Support Different PIC Microcontroller Devices Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PIC16C62/63/64/65/73/74 Demo-B BOARD DEMO PICDEM-2 PLUS PICDEM 2 PLUS, LCD, DEMO BOARD PICDEM2PlusDemoBoardforPIC16xxxandPIC18xxxDevices

¥1076.6880
详情
DV007004

DV007004

microchip

Production Programmer/Development Kit PRODUCTION PROGRAMMER/DEVELOPMENT Programmers - Processor Based MPLAB PM3 Universal Device Programmer MPLAB PM3 UNIVERSAL DEVICE PROGRAMMER Universal Device Programmer PROGRAMMER UNIVERSAL PM3 DV007004, Development Kit, 8 bit, PIC MPLAB PM3 Universal Device Programmer Socket Module Adapter MPLAB PM3 PROGRAMMER, PIC, DSPIC30F PRODUCTIONPROGRAMMER/DEVELOPMENTKITWITHBUILT-INICSP.PROGRAMSPICMICRO&DS PM3 Universal Device Programmer PC hosted mode / Stand-alone mode, DV007004, Microchip Microchip 处理器和微控制器开发套件

¥6378.2400
详情
DV164035

DV164035

microchip

MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件

¥1422.4200
详情
DVA18XP280

DVA18XP280

microchip

Evaluation Board For Device Adapter PIC12C50X, CE51X PDIP And SOIC 8 LD Device Adapter Sockets & Adapters Processor MOD DEVICE ADAPTER 18F2220 PDIP 28LD PIC18F2220,2320PDIP28LDDEVICEADAPTER

详情
TC54VC4302ECB713

TC54VC4302ECB713

microchip

Volt Supervisor Detect 1.1V to 6V 3-Pin SOT-23A T/R 4.3V Voltage Detector 2% Tol. IC VOLT DETECTOR 4.3V SOT23A Voltage supervisor,4.3V,PP,Low,SOT23A Supervisory Circuits 4.2V 2% IC, SUPERVISOR, SMD 电压监控器, 4.21 至 4.39 V监控电压, 多种输出驱动, 3针 SOT-23A封装

¥1.4400
详情
AC164301

AC164301

microchip

18L/28L/40L DIP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters 18L/28L/40L Sckt Mod for MPLAB PM3 MPLAB PM3 UNIVERSAL DEVICE PROGRAMMER SOCKET Module for MPLAB PM3 18L MODULE SKT FOR PM3 18/28/40DIP AC164301, Accessory, PIC, Socket Module MPLAB PM3 Universal Device Programmer Socket Module Adapter 18L/28L/40LDIPSOCKETMODULEFORMPLABPM3 Microchip 通用设备编程器 处理器和微控制器开发套件

¥1094.3280
详情
AC244002

AC244002

microchip

MPLAB Real ICE In Circuit Emulator Performance Pak Emulators / Simulators Performance Pak MPLAB REAL ICE MPLAB REAL ICE PERFORMANCE PAK PAK PERFORMANCE MPLAB REAL ICE AC244002, Accessory, 32 bit, PIC MPLAB, REAL ICE, PERFORMANCE PAK MPLABREALICEPerformancePAK Adapter: Hi-Speed Driver & Receiver adapter MPLAB REAL ICE Performance Pak, AC244002, Microchip

¥921.4560
详情
TC54VN4302EZB

TC54VN4302EZB

microchip

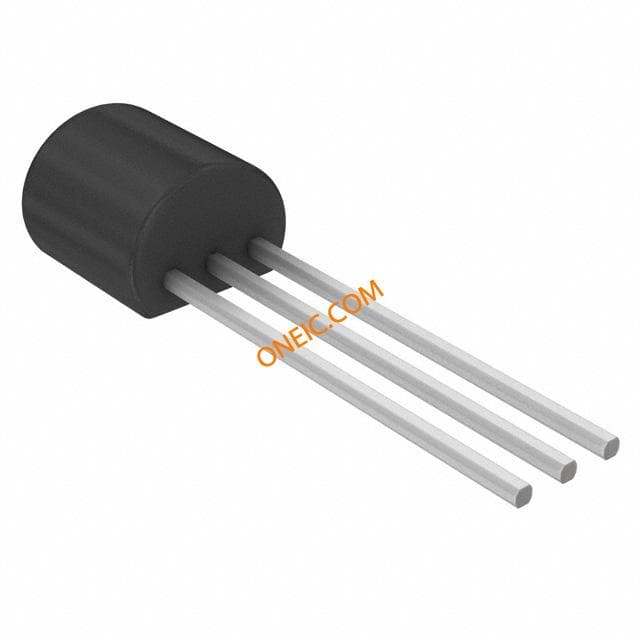

Volt Supervisor Detect 1.1V to 6V 3-Pin TO-92 Bag 4.3V Voltage Detector 2% Tol. IC VOLT DET N-CH OD 4.3V TO92-3 TC54VN4302EZB, Processor Supervisor 1.1 to 6V 3-Pin TO-92 Supervisory Circuits 4.3V, 2% VOLT DETECTOR, 54VN4302, TO-92-3 TC54VN4302EZBI.C. 处理器监控器, 1.1 至 6 V监控电压, 3针 TO-92封装 DETECTOR 4,3V 1µA 2% SOT89 SMD
