点击放大查看

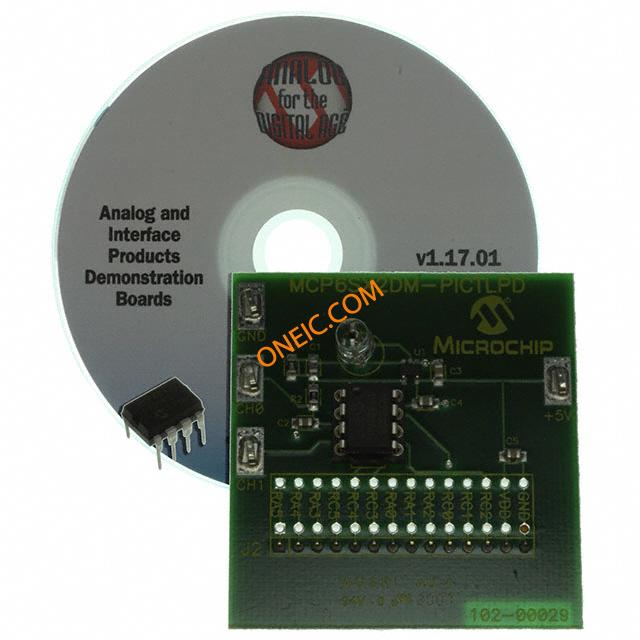

MCP6SX2DM-PCTLPD
| 制造商 | Microchip Technology Inc. |
| 描述 | MCP6SX2 PGA Photodiode PICtail Demo Board Amplifier IC Development Tools MCP6SX2DM-PCTLPD MCP6SX2DM-PCTLPD BOARD DAUGHTER PICTAIL MCP6SX2 MCP6SX2DM-PCTLPD, Development Kit, Amplifier & Linear, PIC MCP6SX2, PHOTO DIODE, DEMO BOARD Development kit: Microchip; MCP6001U, MCP6S22,MCP6S92,PNZ334 Microchip 演示板 放大器和线性 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 5 | 产品 | Demonstration Boards |
| 单位包装 | 1 | 产品类别 | Amplifier IC Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | PIC | 接口 | SPI |
| 灵敏度 | 850nm | 传感器类型 | Light, Current Output |
| 供电电压 | 5 V | 元件数量 | :- |
机械参数
| 重量 | 0.18 | 连接器类型 | PICkit 1 |
产品信息
| 类型 | Development Kit | 内容 | Board, Samples, Software |
| 嵌入式 | No | 产品特性 | :On-Board Photodiode, On-board Transimpedance Amplifier, SMD Test Points |
| 套件类型 | :Amplifier | 基本单元 | :7 |
| 技术 | Amplifier & Linear | 套件内容 | PGA Photodiode PICtail Demo Board for the MCP6S22, MCP6S92 Devices |
| 卡标准 | Development Kit | 单元数量 | 1 |
| 关联项目 | DV16101 | 工具类型/特性 | MCP6S92 |
| 使用的IC/零件 | MCP6001, MCP6S22, MCP6S92 | 芯片组制造商 | :Microchip |
| 应用细节 | :- | ||
