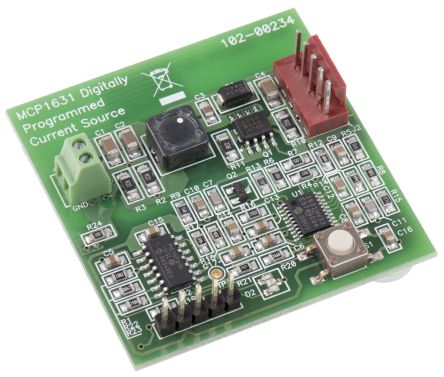

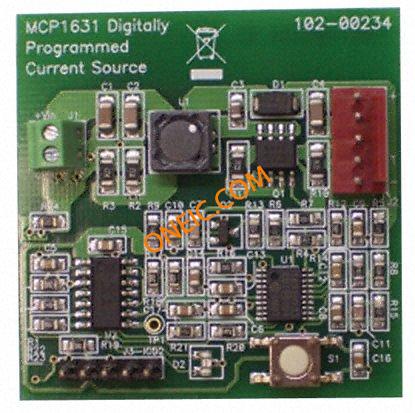

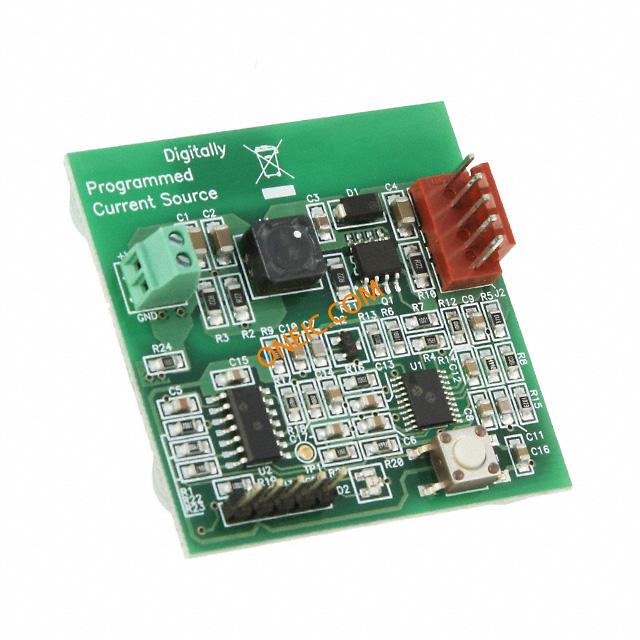

MCP1631RD-DCPC1
| 制造商 | Microchip Technology Inc. |
| 描述 | Development Kit For Mcp1631Hv Digitally Controlled Programmable Current Source Power Management IC Development Tools MCP1631HV Reference Design MCP1631HV Digitally Controlled Progr REF DES BATT CHARG OR LED DRIVER MCP1631HV Current Source Ref Design MCP1631, CURRENT SOURCE, REF DESIGN MCP1631HVREFDESIGN MCP1631HV Digitally Controlled Programmable Current Source Reference Design |
| 分类 |
商业参数
| 最小起订量 | 3 | 单位包装 | 1 |
| 其他名称 | MCP1631RDDCPC1 | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 调光方式 | :Analogue | 内核大小 | :MCP1631HV, PIC16F616 |
| 额定电压 | :3.5V to 16V | 输出电流 | :1A |
| 输出数量 | :1 | 最小输入电压 | 3.5 V ~ 16 V |
| 输出电流/通道 | 700mA | 最大持续工作电压（MCOV） | :16V |
机械参数
| 重量 | 0.2 | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | Firmware for Li-Ion, NiMH, and NiCd Battery Charger | 拓扑 | :Parallel, Series |
| 套件内容 | :Board | 输出及类型 | 1, Non-Isolated |
| 使用的IC/零件 | MCP1631HV, PIC16F616 | 应用细节 | Dimming, LED Driver |
| 支持MCU系列 | :MCP1631HV, PIC16F616 | ||
