DSPIC33FJ256GP710T-I/PF
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dSPIC33 dsPIC RISC 256KB Flash 3.3V 100-Pin TQFP T/R IC DSC 16BIT 256KB FLASH 100TQFP Digital Signal Processors & Controllers - DSP, DSC 256KB FL 30720bytes RAM 40MIPS 85I/O |
| 分类 |
商业参数
| 产品 | DSCs | 产品类别 | Digital Signal Processors & Controllers - DSP, DSC |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 转速 | 40 MHz | RAM 大小 | 30 KB |
| 内核大小 | 16-Bit | 核心类型 | dsPIC |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 存储器容量 | 30 KB | I/O 数量 | 85 |
| 看门狗定时器 | 1 | 数据转换器 | A/D 32x10b/12b |
| 振荡器类型 | Internal | 供电电压 | 3.3 V |
| 程序存储器大小 | 256 KB | 程序存储器类型 | Flash |
| 计数器/定时器数量 | 9 Timer | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 宽度 | 14 mm | 高度 | 1 mm |
| 长度 | 14 mm | 包装方式 | Tape & Reel (TR) |
| 安装样式 | SMD/SMT | 封装形式 | 100TQFP |
| 供应商器件封装 | 100-TQFP (14x14) | 核心数/总线宽度 | 16 Bit |
产品信息
| 类型 | dSPIC33 | 系列 | DSPIC33F |
| 产品特性 | CAN Controller | 片内RAM（通道数×位宽） | 64-chx10-bit|64-chx12-bit |
| 外设 | AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART |
| 制造商全称 | Microchip Technology | 核心处理器 | dsPIC |
| 定时器数量 | 9 | 射频系列/标准 | dSPIC33 |
| 输入数量及类型 | 85 I/O | ||
环境参数
| 工作温度 | -40 to 85 °C | ||
文档与媒体
相关型号
MA330011
microchip
Plug-In Module Comes With A 100-Pin DSPIC33FJ256GP710A DSC Sample Daughter Cards & OEM Boards dsPIC33F GP 100P to 100P Plug In Module dsPIC33F GP 100P to 100P QFP Plug In MODULE DSPIC33 100P TO 100QFP MA330011, Module, 16 bit, dsPIC, Plug-in Module for the dsPIC33FJ256GP710 PIM, 100P TO 100P, QFP, DSPIC33F GP dsPIC33F 100-pin Plug-In Module -, MA330011, Microchip
MA330012
microchip
Plug-In Module Comes With A 100-Pin DSPIC33FJ256GP710A DSC Sample Daughter Cards & OEM Boards dsPIC33F GP 100P to 84P Plug In Module dsPIC33F GP 100P to 84P QFP Plug In MODULE DSPIC33 100P TO 84QFP MA330012, Module, 16 bit, dsPIC, Plug-in Module for the dsPIC33FJ256GP710A DSC PIM, 100P TO 84P, QFP, DSPIC33F GP dsPIC33 GP 100P to 84P TQFP Plug-In Module
AC164323
microchip
100L TQFP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters Socket Module 100L TQFP Socket Module for MPLAB PM MODULE SKT FOR 100TQFP UNIVERSAL SOCKET MODULE
DM300024
microchip
DSPICDEM 1.1 PLUS GENERAL PURP Development Boards & Kits - PIC / DSPIC dsPICDEM 1.1 GP KIT DEMO DSPICDEM 1.1 DM300024, Development Kit, 16 bit, dsPIC, Documentation, dsPIC30F6014A Plug-in Processor Module dsPICDEM1.1PlusGeneralPurposeDemoBoard Development kit: Microchip; dsPIC30F6014A; Connector type: ICSP dsPICDEM 1.1 Plus General Purpose Demo Board
DV164033
microchip
Evaluation Board For Application Development Using Microchipys PIC24F, 16Bit Microcontrollers Development Boards & Kits - PIC / DSPIC ICD 2 w/ Explorer 16 Development Board Explorer 16 Starter Kit KIT START EXPLORER 16 MPLAB ICD2 EXPLORER 16 KIT; MPLAB ICD 2 WITH EXPORER 16 PIC24, DSPIC33, EXPLORER 16 KIT EXPLORER16KIT,MPLABICD2WITHEXPORER16 Development kit: Microchip
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件

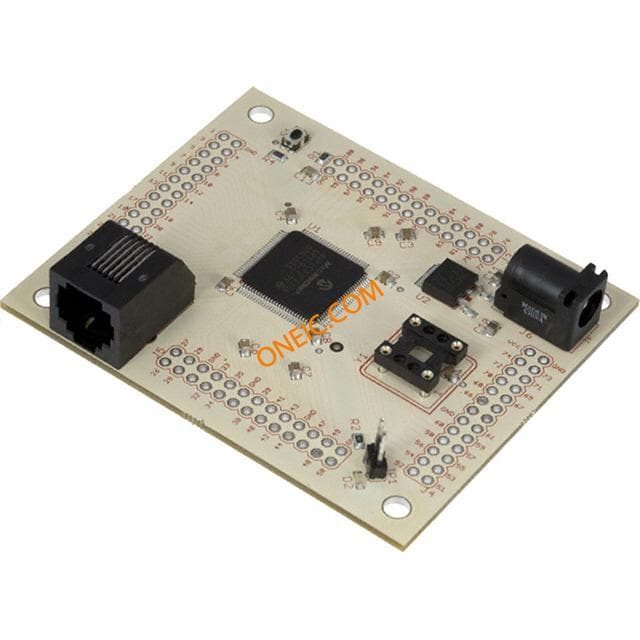

DKSB1001B
Digi-Key Evaluation Boards
DSPIC33 BREAKOUT BOARD
