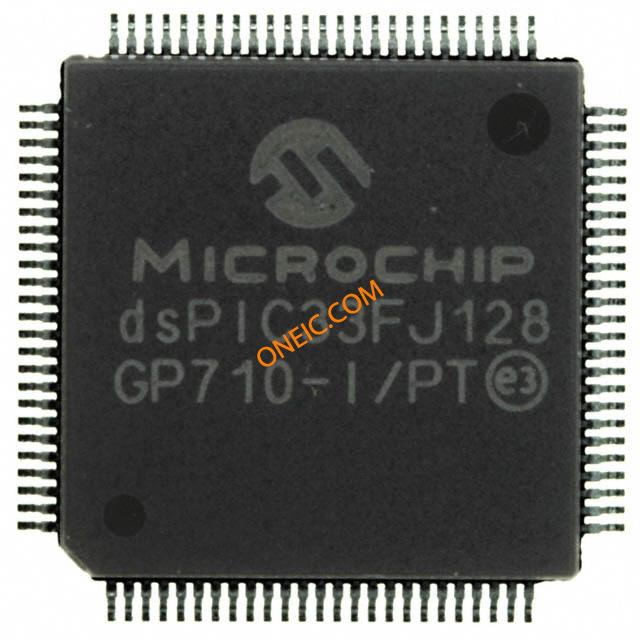

DSPIC33FJ128GP710-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dSPIC33 dsPIC RISC 128KB Flash 3.3V 100-Pin TQFP Tray MCU 16-bit dsPIC33F dsPIC RISC 128KB Flash 3.3V 100-Pin TQFP Tray IC DSC 16BIT 128KB FLASH 100TQFP Digital Signal Processors & Controllers - DSP, DSC 40MIPS 128KB |
| 分类 |
商业参数
| 产品 | DSCs | 其他名称 | DSPIC33FJ128GP710IPT |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 119 | 标准封装名称 | QFP |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | No | ||
电气参数
| 转速 | 40 MHz | RAM 大小 | 16 KB |
| 内核大小 | 16-Bit | 核心类型 | dsPIC |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 存储器容量 | 16 KB | I/O 数量 | 85 |
| 位数 | 10/12 | 额定电压 | 3 |
| 看门狗定时器 | 1 | 数据转换器 | A/D 32x10b/12b |
| 振荡器类型 | Internal | 串行协议 | 2 |
| 供电电压 | 3.3 V | RS-232（422、485） | 2 |
| 程序存储器大小 | 128 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 64/64 | 最小供电电压 | 3.6 |
| 计数器/定时器数量 | 9 Timer | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 宽度 | 12 | 包装方式 | Tray |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 封装形式 | 100TQFP |
| 总长度 | 12 | 包装数量 | TQFP |
| 位数 | 100 | 外壳尺寸-插件 | 1 |
| 供应商器件封装 | 100-TQFP (12x12) | 核心数/总线宽度 | 16 Bit |
产品信息
| SPI | 2 | 系列 | DSPIC33F |
| 产品特性 | CAN Controller | 协议 | 2 |
| 片内RAM（通道数×位宽） | 64-chx10-bit|64-chx12-bit | 外设 | AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| 架构 | RISC | 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART |
| 制造商全称 | Microchip Technology | 核心处理器 | dsPIC |
| 定时器数量 | 9 | 射频系列/标准 | dSPIC33 |
| DigiKey可编程 | Yes | 印刷电路板数量 | 100 |
| 输入数量及类型 | 85 I/O | ||
环境参数
| 工作温度 | -40 to 85 °C | ||
