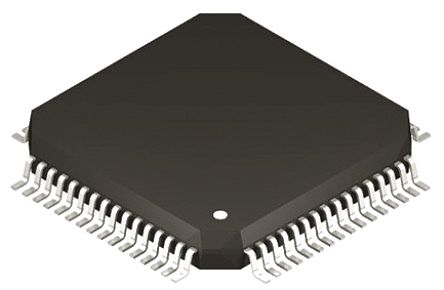

点击放大查看
DSPIC30F6012-30I/PF
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dsPIC30 dsPIC RISC 144KB Flash 3.3V/5V 64-Pin TQFP Tray 16 Bit MCU/DSP 30MIPS 144 KB FLASH IC DSC 16BIT 144KB FLASH 64TQFP Digital Signal Processors & Controllers - DSP, DSC 30MHz 144KB Flash 16BIT 30MIPS DSPIC, SMD, 30F6012-30 MCU 16-Bit dsPIC30F 144KB Flash TQFP64 |
| 分类 |
商业参数
| 最小起订量 | 90 | 产品 | DSCs |
| 单位包装 | 90 | 产品类别 | Digital Signal Processors & Controllers - DSP, DSC |
| 标准包装数量 | Trays | 工厂包装数量 | 90 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :30F6012-30 |
电气参数
| 转速 | 30 MHz | RAM 大小 | 8 KB |
| 内核大小 | 16-Bit | 核心类型 | dsPIC |
| 频率 | :30MHz | 接口 | CAN/I2C/I2S/SPI/UART |
| 时钟速率 | 30 MHz | EEPROM容量 | 4K x 8 |
| 存储器容量 | 8 KB | I/O 数量 | 52 |
| 核心电压 | :5.5V | 数据转换器 | A/D 16x12b |
| 振荡器类型 | Internal | 供电电压 | 3.3|5 V |
| 程序存储器大小 | 144 KB | 程序存储器类型 | Flash |
| 工作频率 | :40MHz | 供电电压 (Vcc/Vdd) | 2.5 V ~ 5.5 V |
机械参数
| 重量 | 0.000001 | 包装方式 | Tray |
| 端接方式 | :SMD | 引脚间距 | :0.65mm |
| 安装样式 | SMD/SMT | 引脚数 | :64 |
| 封装形式 | 64TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 位数 | :30F6012 | 供应商器件封装 | 64-TQFP (14x14) |
| 核心数/总线宽度 | 16 Bit | ||
产品信息
| 类型 | dsPIC30 | 系列 | dsPIC30F6012 |
| 基本单元 | :30 | 闪存大小 | :144KB |
| 片内RAM（通道数×位宽） | 16-chx12-bit | 外设 | AC'97, Brown-out Detect/Reset, I²S, LVD, POR, PWM, WDT |
| 连接性 | CAN, I²C, SPI, UART/USART | 核心处理器 | dsPIC |
| 指令类型 | Fixed/Floating Point | 定时器数量 | 5 |
| 射频系列/标准 | dsPIC30 | ||
环境参数
| 温度范围 | :Industrial | 工作温度 | -40 to 85 °C |
