点击放大查看

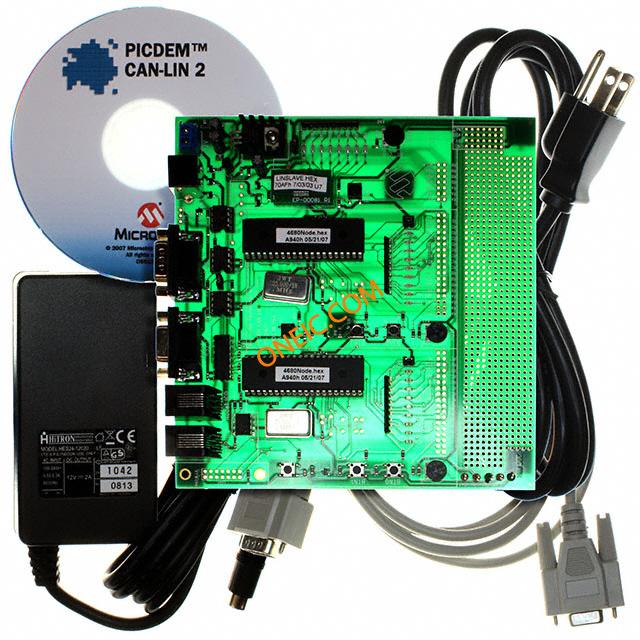

DM163011
| 制造商 | Microchip Technology Inc. |
| 描述 | Demonstration Board To Support Different PIC Microcontroller Devices Development Boards & Kits - PIC / DSPIC For PIC18FXX8 PICDEM CAN-LIN 2 for PIC18FXX8 PICDEM CAN-LIN 2 FOR PIC18FXX8 DM163011, Development Kit, CAN, PIC PICDEMCAN-LIN2FORPIC18FXX8 Development kit: Microchip; Connector type: ICSP x2 Microchip CAN 微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Demonstration Boards |
| 单位包装 | 1 | 产品类别 | Development Boards & Kits - PIC / DSPIC |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 核心类型 | PIC | 接口 | RS-232 |
| 供电电压 | 5 V | 可用总延迟 | 4=>6 |
机械参数
| 重量 | 1.1 kg | 连接器类型 | ICSP x2 |
| 供货尺寸 | Microchip Technology | 核心数/总线宽度 | 8 bit |
产品信息
| 类型 | Development Kit | 内容 | Board, Cable, Power Supply, Software |
| 嵌入式 | Yes, MCU, 8-Bit | 功能 | PICDEM CAN-LIN 2 demonstration board |
| 硬件配件 | RS-232 Cable | 套件类型 | Microchip |
| 软件 | Demo Programs | 技术 | CAN |
| 应用 | CAN - LIN Demo | 架构 | 8/16-bit |
| 套件内容 | CD with Documentation, Demonstration Board, Pre-Programmed Sample Device, RS232 Cable, Sample Programs | 主要用途 | Interface, CAN and LIN |
| 卡标准 | Development Kit | 粒径 | 40P PDIP PIC18F458 |
| 通信接口 | RS232 | 单元数量 | 1 |
| 工具类型/特性 | PIC18F258, PIC18F458 | 射频系列/标准 | PIC16 |
| 使用的IC/零件 | PIC18F258, PICF458, PIC16C432 | ||
