点击放大查看

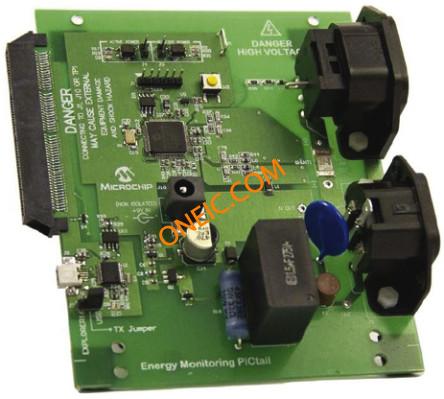

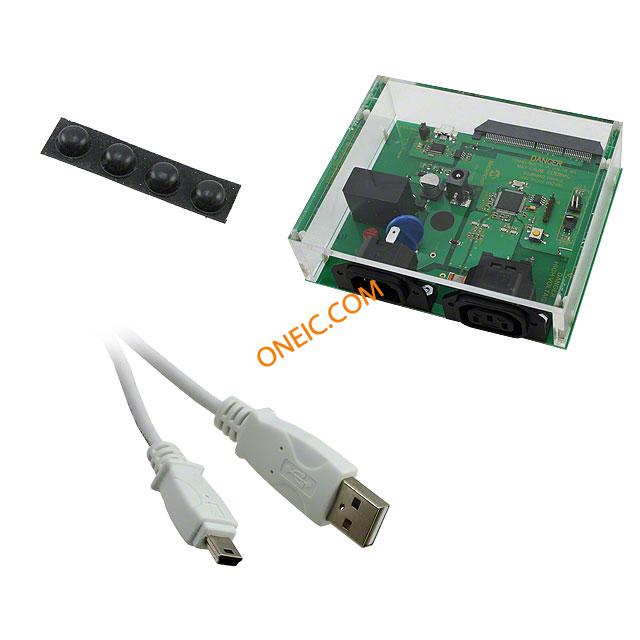

ARD00330
| 制造商 | Microchip Technology Inc. |
| 描述 | PIC18F87J72 ENERGY MONITORING PICTAIL PLUS DAUGHTER BD Daughter Cards & OEM Boards PIC18F87J72 Energy Mntr PICtail+Dght Bd DAUGHTER BOARD PIC18F87J72 ARD00330, Development Kit, PIC18F87J72 Energy Monitoring PICtail Plus Daughter Board PIC18F, ENERGY METER, DAUGHTER BOARD |
| 分类 |
商业参数
| 产品类别 | Daughter Cards & OEM Boards | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423990 | ||
电气参数
| 核心类型 | :PIC | 元件数量 | :PIC18F |
机械参数
| 重量 | 0.3 | 核心数/总线宽度 | 8 bit |
产品信息
| 内容 | Board | 嵌入式 | Yes, MCU, 8-Bit |
| 产品特性 | :Single Phase Energy Measurement, Low Cost Shunt Based Design, Better than IEC Class 0.5 Performance | 技术 | Power Management |
| 套件内容 | PIC18F87J72 Energy Monitoring PICtail Plus Daughter Board | 主要用途 | Power Management, Energy/Power Meter |
| 卡标准 | Development Kit | 工具类型/特性 | PIC18F87J72 |
| 主要特性 | Single Phase Shunt Energy Meter | 使用的IC/零件 | PIC18F87J72 |
| 芯片组制造商 | :Microchip | 适用产品/相关产品 | :Energy Meters |
