AC244028
| 制造商 | Microchip Technology Inc. |
| 描述 | PROCESSOR EXTENSION PAK FOR PI Sockets & Adapters Processor Ext Pak for PIC24F16KA102 Proc.Ext.Pak for PIC24F16KA102 PROC EXTENS PAK PIC24F16KA102 AC244028, Accessory, 16 bit, PIC EXTENSION PAK, FOR PIC24F16KA102 EMULATIONHEADER,AC244028 Microchip 16 位 MCU 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Processor Extension Pak |
| 单位包装 | 1 | 产品类别 | Sockets & Adapters |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | PIC | ||
机械参数
| 重量 | 0.04 | 核心数/总线宽度 | 16 bit |
产品信息
| 产品特性 | :In-Circuit Debug The PIC24F16KA102 Family of MCUS, RJ-11 Adapter & 3 Pairs of Pin Headers | 匹配码 | AC244028 |
| 技术 | 16 bit | 适配器类型 | :Processor Extension |

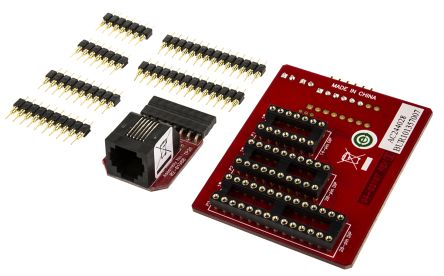

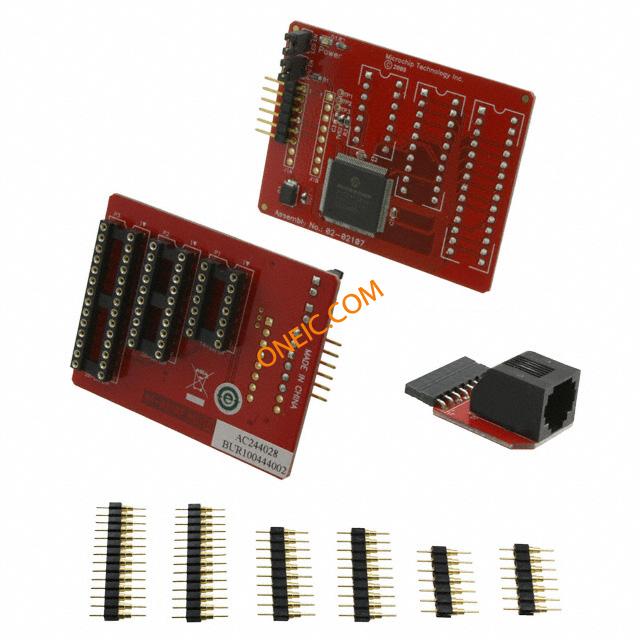

| 套件内容 | 3 Pairs of Pin Headers, Header Interface, Processor Extension Pak for PIC24F16KA102 Family, RJ11 Adapter | 卡标准 | Accessory |
| 附件类型 | Processor Daughter Card | 开发套件 | ACCESSORY |
| 标准交期 | 6 weeks | 工具类型/特性 | PIC24F16KA102 |
| 转换端（适配器端） | :PICkit 2 | 转换自（适配器端） | :MPLAB REAL ICE, MPLAB ICD 3, PICkit 3, MPLAB ICD 2 |
| 适用产品/相关产品 | AC244028 | ||
