AC162083
| 制造商 | Microchip Technology Inc. |
| 描述 | Development Tools Headers For ICE Devices Sockets & Adapters MPLAB ICD 2 8L/14L HEADER PIC16F616 MPLAB ICD 8L/14L HEADER PIC16F616 HEADER MPLAB ICD2 PIC16F616 8/14 AC162083, Header, 8 bit, PIC, Header Interface for PIC16F615, PIC12F616 and PIC12F617 MPLAB ICD HEADER, FOR PIC16F615 HEADERI/F,AC162083 Adapter: debug header; PIC12F617 MPLAB ICD 8 Lead/14 Lead Header PIC16F616 Microchip 8 位 MCU 针座 微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 4 | 产品 | MPLAB ICD 2 Headers |
| 单位包装 | 1 | 产品类别 | Sockets & Adapters |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | PIC | ||
机械参数
| 重量 | 0.2 | 尺寸/外形 | 2.45 in x 1.6 in x 0.725 in |
| 核心数/总线宽度 | 8 bit | ||
产品信息
| 类型 | Development Kit | 产品特性 | :Header Board Provide In-circuit Debugging & Emulating Capabilities for Microchip Device |
| 功能 | Used to debug the PIC16F615, PIC12F616 and PIC12F617 emulation family devices | 技术 | 8 bit |
| 适配器类型 | :ICD2 Header Interface | 套件内容 | Header Interface for PIC16F615, PIC12F616 and PIC12F617 |
| 卡标准 | Header | 附件类型 | Transition Header |
| 单元数量 | 1 | 关联项目 | MPLAB-ICD2, MPLAB-ICD3 |
| 工具类型/特性 | PIC12F609/HV609, PIC16F616/HV616, PIC16F610/HV610, PIC12F617, PIC12F615/HV615, PIC12F609/HV609 | 电路数 | PIC12F617 |
| 支持MCU系列 | :PIC16F | 适用产品/相关产品 | MPLAB ICD2, PIC16F616-ICD |
相关型号
PIC12F615-E/SN
microchip
MCU 8-bit PIC12 PIC RISC 1.75KB Flash 2.5V/3.3V/5V 8-Pin SOIC N Tube 8 bit MCU SOIC8 RoHSco IC MCU 8BIT 1.75KB FLASH 8SOIC 8-bit Microcontrollers - MCU 2KB Flash 64 RAM MCU, 8BIT, PIC12F, 20MHZ, SOIC-8 Microchip PIC12F 系列 8 bit PIC MCU, 20MHz, 1024 字 ROM 闪存, 64 B RAM, 8针 SOIC封装 PIC12F 1,75K SOIC8 125°C

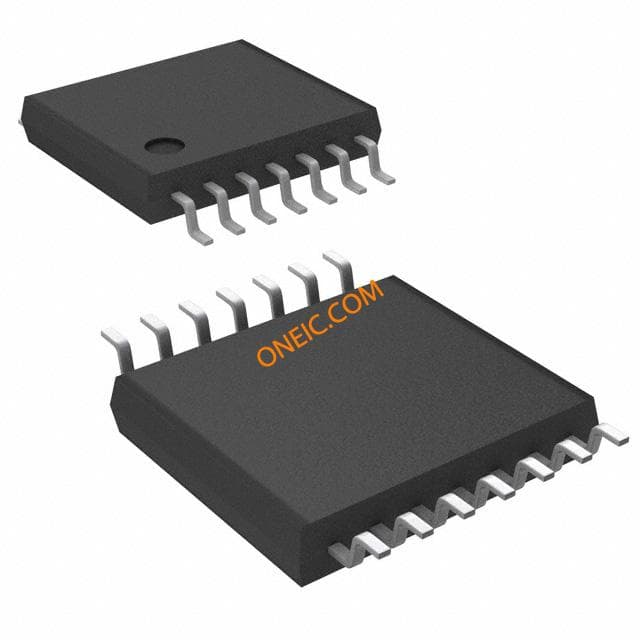

PIC16F616-I/ST
