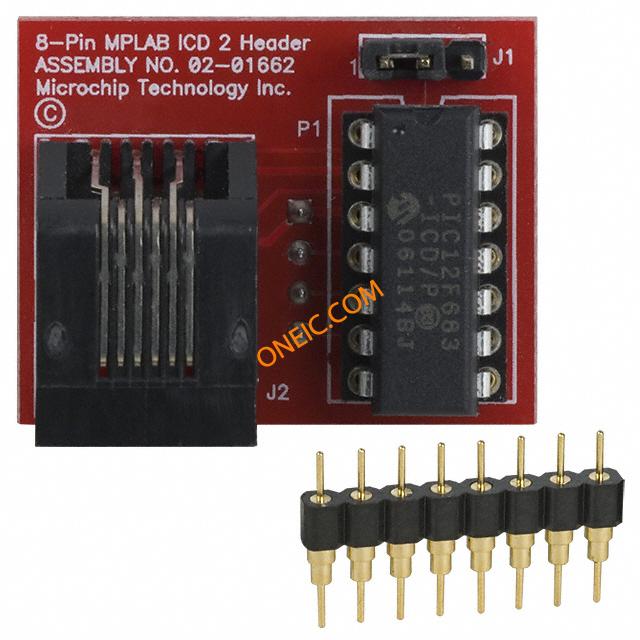

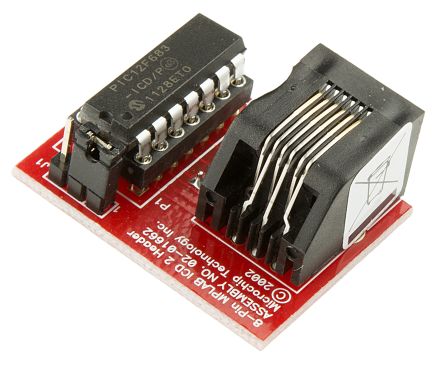

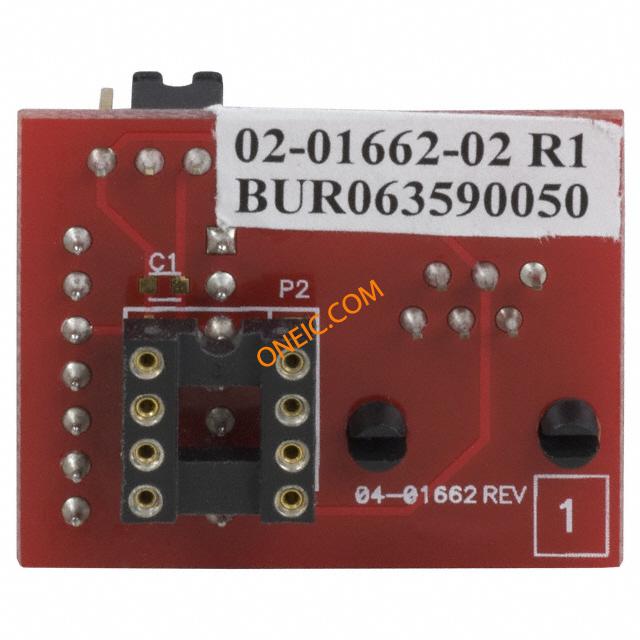

AC162058
| 制造商 | Microchip Technology Inc. |
| 描述 | Header Board To Be Used With MPLAB ICD 2 This Device Is Mounted On The Top Of A Header And Its Signals Sockets & Adapters HD Interface 12F683 MPLAB ICD Header Interface for PIC12 HEADER MPLAB ICD2 FOR PIC12F683 MPLAB ICD HEADER, FOR PIC12F683 Headers,MPLABICD2HeaderInterfaceforPIC12F683-DevopmentKits Adapter: debug header; PIC12F683 Microchip 8 位 MCU 针座 微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 5 | 产品 | MPLAB ICD 2 Headers |
| 单位包装 | 1 | 产品类别 | Sockets & Adapters |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | PIC | 接口 | Header |
机械参数
| 重量 | 0.18 | 主要材料 | Microcontroller |
| 尺寸/外形 | 1.275 in x 1 in x 0.725 in | 核心数/总线宽度 | 8 bit |
产品信息
| 类型 | Debugger | 产品特性 | :- |
| 功能 | 2 headers provide in-circuit debugging capabilities for specific Microchip devices | 适配器类型 | debug header |
| 附件类型 | Transition Header | 单元数量 | 1 |
| 关联项目 | MPLAB-ICD2, MPLAB-ICD3 | 工具类型/特性 | PIC12F683 |
| 电路数 | PIC12F683 | 适用产品/相关产品 | MPLAB ICD2, PIC12F683-ICD |
