点击放大查看

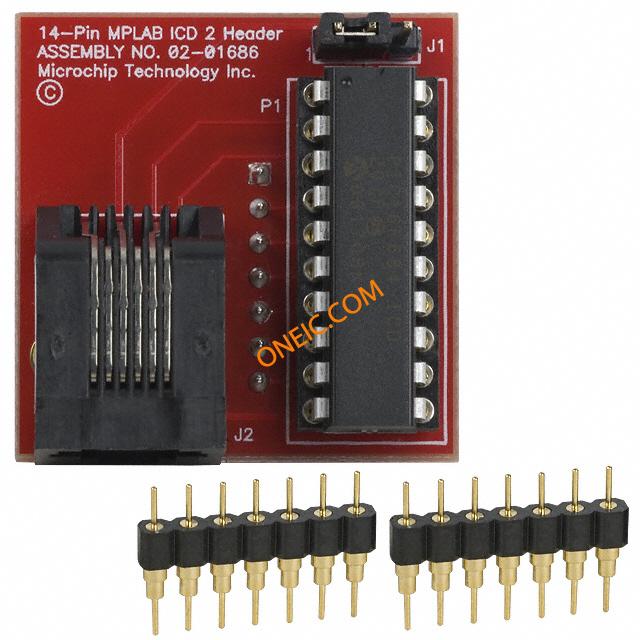

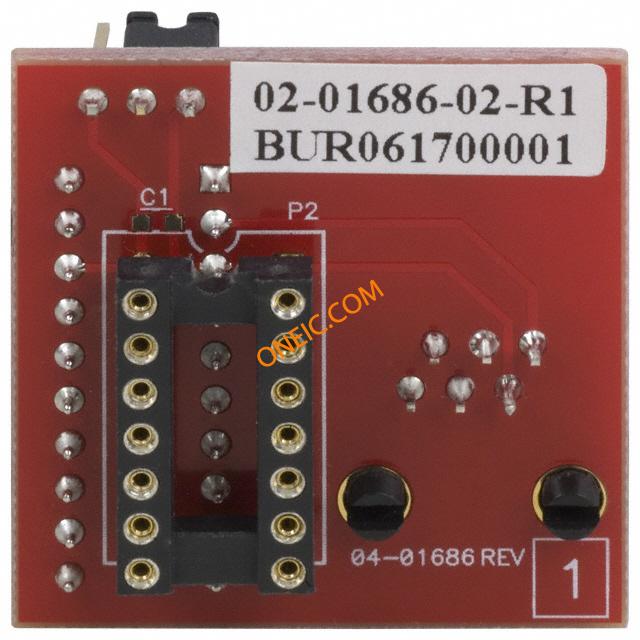

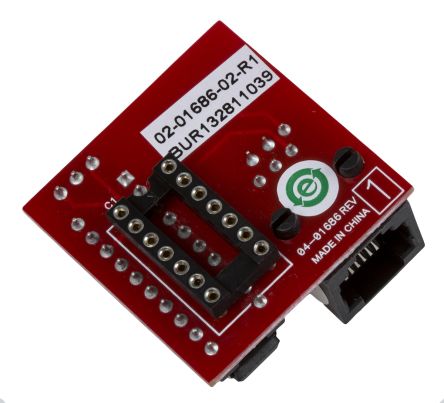

AC162055
| 制造商 | Microchip Technology Inc. |
| 描述 | Header Board To Be Used With MPLAB ICD 2 This Device Is Mounted On The Top Of A Header And Its Signals Sockets & Adapters For PIC16F684 ICD2 HEADER for PIC16F684 HEADER INTERFACE ICD2 16F684 AC162055, Header, 8 bit, PIC, Header Interface for PIC16F684 MPLABICD2HeaderInterfaceforPIC16F684(PDIP-14) Microchip 8 位 MCU 针座 微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 5 | 产品 | Emulator |
| 单位包装 | 1 | 产品类别 | Sockets & Adapters |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
| 无铅定义 | RoHS-conform | ||
电气参数
| 核心类型 | PIC | 接口 | Header |
机械参数
| 主要材料 | Microcontroller | 核心数/总线宽度 | 8 bit |
产品信息
| 类型 | Debugger | 功能 | (14 PDIP) MPLAB ICD 2 for PIC16F684 |
| 匹配码 | ICD2 HEADER INTERFACE | 技术 | 8 bit |
| 套件内容 | Header Interface for PIC16F684 | 卡标准 | Header |
| 附件类型 | Transition Header | 开发套件 | ACCESSORY |
| 标准交期 | 6 weeks | 适用产品/相关产品 | ICD2, PIC16F684 |
