点击放大查看

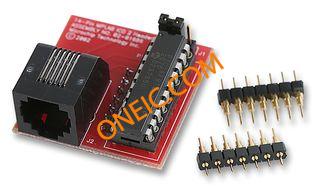

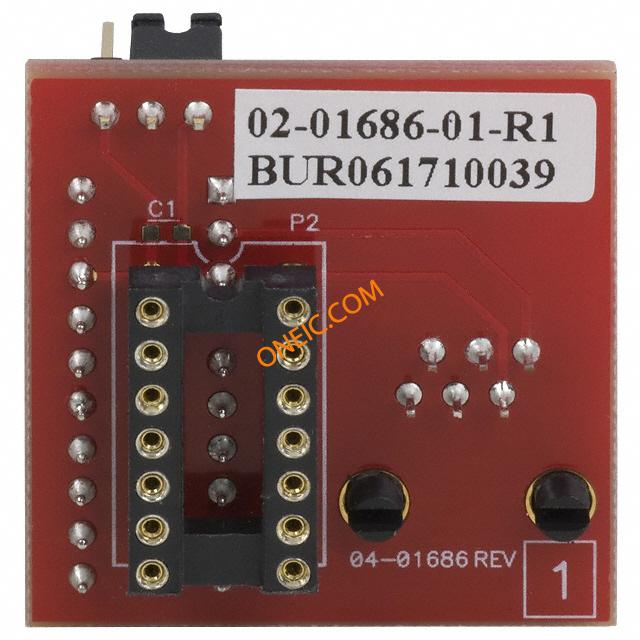

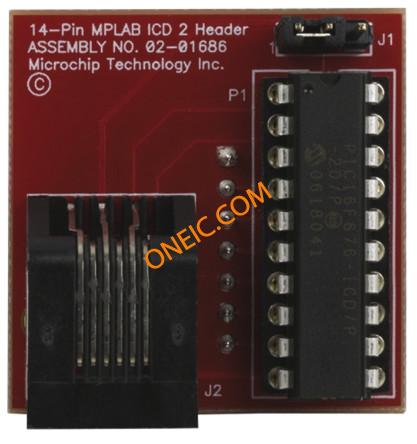

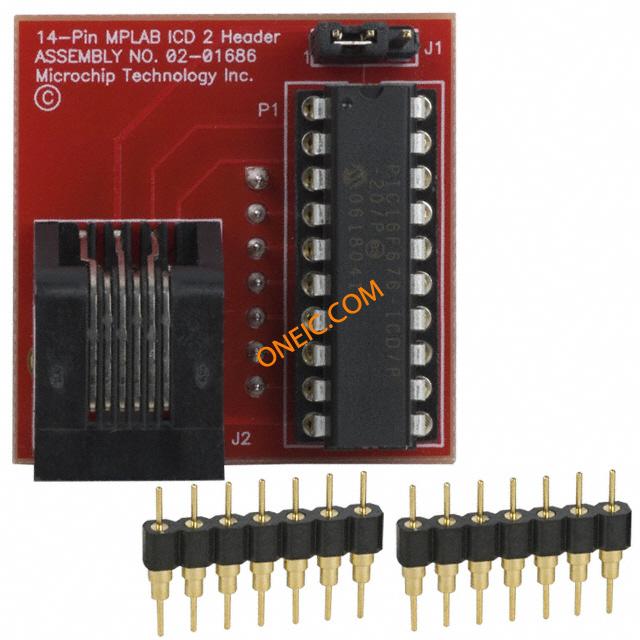

AC162052
| 制造商 | Microchip Technology Inc. |
| 描述 | Evaluation Board For Headers For ICD Devices Sockets & Adapters for PIC16F676/630 MPLAB ICD Header Interface (14 PDIP) HEADER ICD FOR PIC16F676/630 AC162052, Header, 8 bit, PIC, Header Interface for PIC16F676/630 MPLAB ICD HEADER, FOR PIC16F676 Adapter: debug header; PIC16F676/630 |
| 分类 |
商业参数
| 最小起订量 | 5 | 产品 | MPLAB ICD 2 Headers |
| 单位包装 | 1 | 产品类别 | Sockets & Adapters |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | PIC | ||
机械参数
| 重量 | 0.092 | 尺寸/外形 | 1.3 in x 1.275 in x 0.725 in |
| 核心数/总线宽度 | 8 bit | ||
产品信息
| 类型 | Debugger | 产品特性 | :- |
| 功能 | 2 headers provide in-circuit debugging capabilities for specific Microchip devices | 技术 | 8 bit |
| 适配器类型 | debug header | 套件内容 | Header Interface for PIC16F676/630 |
| 卡标准 | Header | 附件类型 | Transition Header |
| 单元数量 | 1 | 关联项目 | MPLAB-ICD2, MPLAB-ICD3 |
| 工具类型/特性 | PIC16F630/676 | 电路数 | PIC16F676/630 |
| 适用产品/相关产品 | MPLAB ICD2, PIC16F676-ICD | ||
