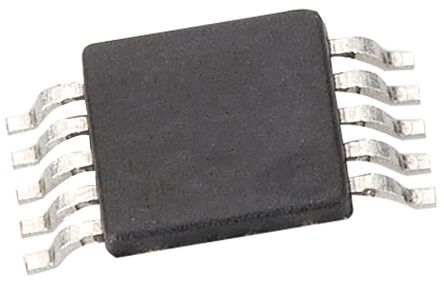

MCP1653S-E/UN
| 制造商 | Microchip Technology Inc. |
| 描述 | . MCP1653S-E/UN - Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-MSOP from Microchip Technology. from now! |
| 分类 |
商业参数
| 最小起订量 | 2500 | 单位包装 | 100 |
| 产品类别 | Switching Controllers | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| PWM类型 | Current Mode | 占空比 | 80% |
| 输出类型 | 可调整的 | Cuk转换器 | No |
| 降压转换器 | No | 隔离电源 | No |
| 稳压器类型 | 是 | 升压转换器 | Yes |
| 最大频率 | 850kHz | 供电电压 | 2.7 V ~ 5.5 V |
| 倍压转换器 | No | 反激转换器 | Yes |
| 输出数量 | 1 | 分频/倍频 | No |
| 反相转换器 | No | 最大额定电流 | 100mA |
| 开关频率 | 750 kHz | 输出电压（最大） | 100 V |
| 输出电压（最小/固定） | 3.3 V | ||
机械参数
| 宽度 | 3mm | 高度 | 0.95mm |
| 长度 | 3mm | 包装方式 | Tube |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | 10 | 封装形式 | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| 冷却的封装 | MSOP | 包装数量 | MSOP |
| 尺寸/外形 | 3 x 3 x 0.95mm | 位数 | 10 |
产品信息
| 类型 | Current Mode PWM Controllers | 功能 | Y |
| 制造商全称 | Microchip Technology | 照明功能 | 上升 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
